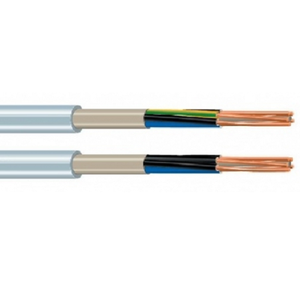

4 x 1.5 mm² Solid Bare Copper Unshielded PVC 300/500V NYM-J/-O Eca Installation Cable

4 x 1.5 mm² Solid Bare Copper Unshielded PVC 300/500V NYM-J/-O Eca Installation Cable

Allowable Ampacity for 4 x 1.5 mm² Solid Bare Copper Unshielded PVC 300/500V NYM-J/-O Eca Installation Cable: 100 Amps

About:

The "4 x 1.5 mm² Solid Bare Copper Unshielded PVC 300/500V NYM -J/-O Eca Installation Cable" is a specific type of electrical wiring cable that is commonly used in building construction. The "4 x 1.5 mm²" indicates that this cable has a single conductor with a cross-sectional area of 1.5 square millimeters. This conductor is made of solid bare copper, known for its good conductivity and durability. The "300/500V" rating signifies that the cable is rated for a nominal voltage of 300 volts when used in a multi-phase system and 500 volts for a single-phase system.

Also Known As:

• Single-core 1.5 mm² NYM installation cable
• Solid copper conductor PVC cable
• 300/500V building wire
• Euroclass Eca single-core cable

Application:

• Flexible halogen-free transformer/installation cable.
• Suitable for the power supply of systems that are sensitive to electromagnetic interference signals and where high demands are placed on fire safety.
• Can be installed under unfavorable conditions, such as damp areas.

Standards:

EN50575:2014+A1:2016

Construction:

• Conductor: Bare Copper Class 5 round
• Insulation: Vulcanized Polyethylene (XLPE)
• Veins: filled into a round whole
• Inner Jacket: n/a
• Braiding: Wrapped aluminum foil with tinned copper braid
• Outer Sheath: LSZH Polyolefin

Features:

• The cable's construction meets European fire safety standards, ensuring it does not propagate flames and has limited smoke production.
• The PVC insulation is robust, which protects against abrasion and other environmental risks while also being easy to handle and install.
• Solid conductors offer the advantage of rigidity for installations where the cable will not be flexed frequently.
• Suitable for a variety of installations, including those that are surface-mounted or enclosed, providing versatility for different building designs.
• The insulation may be color-coded according to European wiring color standards for easy identification during installation.

Specifications:

• Cores x Cross-Section: 4 x 1.5 mm²
• Outer Diameter approx. in: 10 mm
• Minimum Installation Temp: -5°C
• Maximum Conductor Temp: +70°C (temporarily overloadable up to 100°C)
• Operating Temp: Min. -40°C, Max +70°C
• Mantle color: Light Gray
• Select: VDE
• CPR classification: Eca
• Rated Voltage: 300/500V
• Test stress: 2 kV
• Weight kg/km: 132
