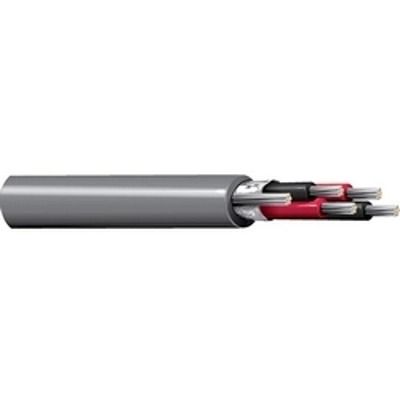

Belden 9526 22 AWG 19-Pair 300V Power-Limited Tray Cable

General Description:

22 AWG pairs stranded (7x30) tinned copper conductors, twisted pairs, PVC insulation, overall Beldfoil® shield (100% coverage), PVC jacket

Also Known As:

Belden 9526 Cable, Belden 9526 Multi-Conductor Cable, Belden 9526 Power-Limited Tray Cable, Belden 9526 Industrial Communication Cable.

Insulation:

F-R PVC - Flame Retardant Polyvinyl Chloride

Outer Shield Material:

Outer Shield Trade Name : Beldfoil®
 Type : Tape
Outer Shield Material : Aluminum Foil-Polyester Tape
 Coverage (%) : 100

Outer Jacket Material:

F-R PVC - Flame Retardant Polyvinyl Chloride: 0.072

Applicable Standards & Environmental Programs:

NEC/(UL) Specification: CMG, ITC-ER, PLTC-ER
CEC/C(UL) Specification: CMG
EU Directive 2011/65/EU (ROHS II): Yes
EU CE Mark: Yes
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
EU Directive 2002/96/EC (WEEE): Yes
EU Directive 2003/11/EC (BFR): Yes
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Specifications:

• Part Number: 9526

• AWG: 22

• No of Pairs: 19

• Stranding: 7x30

• Conductor Material: TC - Tinned Copper

• Insulation Material: F-R PVC - Flame Retardant Polyvinyl Chloride

• Nom. Wall Thickness (in.) : 0.072

• Operating Temperature Range: -30°C To +105°C

• UL Temperature Rating: 105°C

• Bulk Cable Weight: 210 lbs/1000 f

• Max. Recommended Pulling Tension: 350 lbs.

• Min. Bend Radius (Install)/Minor Axis: 6.400 in.
