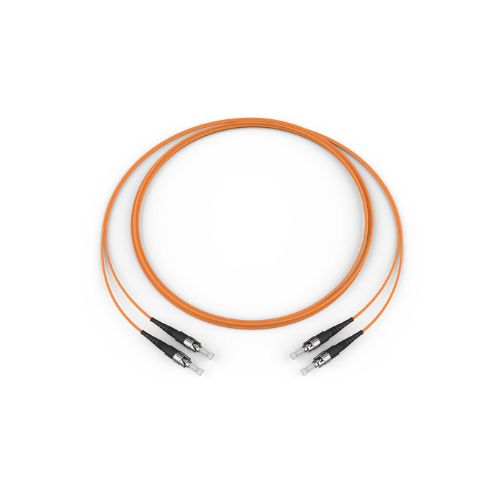

5 Meters Fiber Optic Jumper 2F Zipcord Riser Standard Orange Jacket 505002K5130005M

Product Information

Specification

About :

Two-fiber cable assemblies are offered with a variety of connector and cable combinations. Connector options include LC, SC, FC, ST compatible, and MT-RJ. RoHS compliant Zipcord, DFX, MIC, Fan-out, and RIC cables are available. Additional detailed furcation images are available in the Cable Assembly Family Specification Sheet.

Specifications :

Product Number : 505002K5130005M
EAN Code : 4056418609195
Flame Rating : Riser (OFNR)
Fiber Category : 62.5 µm MM (OM1)
Cable Assembly Type : Two Fiber
Application : General Building Applications,  Vertical Riser
Cable Type : Tight-Buffered
RoHS : Free of hazardous substances according to RoHS 2011/65/EU
Fiber Count : 2
Outer Jacket Color : Orange
Insertion Loss, Typical : 0.35 dB
Boot Color : Black
Connector Type : ST compatible
Ferrule Material : Ceramic
Housing Color : Beige
Housing Material : Composite
Leg Diameter : 2.9 mm (0.11 in)
Plug Type : Heat-shrink sleeve
Plug Height : 7.1 mm (0.28 in)
Plug Width : 4.3 mm (0.17 in)
Plug Depth : 25.4 mm (1 in)
Leg Length : 254 mm   -0 / +38.1mm (10 in   -0 / +1.5in)

Features :

• Rugged and durable

• Every termination is tested to ensure the highest in network performance

• Corning proprietary manufacturing processes and advanced technology result in unsurpassed product consistency

• Integrated developer and manufacturer of cable, connectors and fiber to ensure overall cable assembly performance
