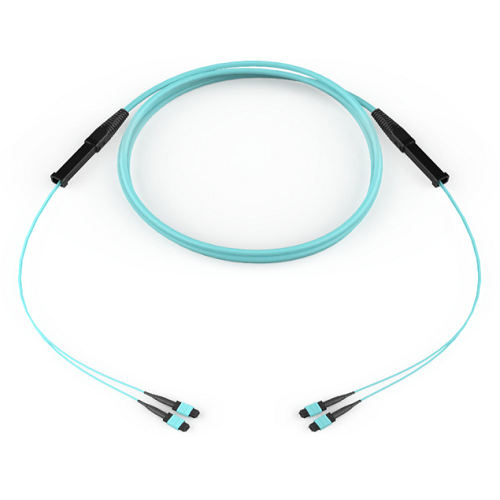

300" Feet EDGE8 MTP Trunk Universal OM3 16F Distribution Non-armored Indoor Plenum Cable to MTP 8F Pinned 33" Legs GE5E516TPNDDU300F

Product Information

Specification

About:

MTP Trunks, Harnesses, and Jumpers are part of a fiber optic tipto-tip solution for Data Centers, Storage Area Networks (SANs), some Carrier applications or any other scenario utilizing an MTP based fiber optic cabling system. These products are high density preterminated optical cabling solutions that simplify installation and improve performance in the environment. Corning Clear Curve bend-optimized optical fiber is the core element ensuring reliability when designing custom-engineered components thanks to its significant reduction in macro bend loss even in the most challenging bend scenarios. Corning factory-terminated MTP Trunks, Harnesses, and Jumpers provide improved system performance, ensure component compatibility, and yield consistent high quality.

Specifications:

Fiber Count: 16
Fiber Type: OM3 MM
Outer Diameter: Standard
Flame Rating: Plenum
Armor: Non-armored
Length: 300
Unit of Measure: Feet
Cable Type: Distribution
Fiber Mode: Multimode
Connector: MTP 8F Pinned
Connector Keying: Non-Keyed
Connector Loss: Standard Loss
Connector Pinning: Pinned
Leg Length: 33 Inch
Part Number: GE5E516TPNDDU300F

Features:

• Type: Distribution Non-armored Indoor Plenum cable

• Fiber Count: 16 fibers, with MTP 8F connectors on both ends

• Connector Type: MTP 8F Pinned

• Leg Length: 33 inches on each leg

• Grip: One end only

• Performance: OM3 Multimode fiber for high-speed data transmission

• Application: Designed for indoor use in plenum spaces, ensuring safety and performance in demanding environments
