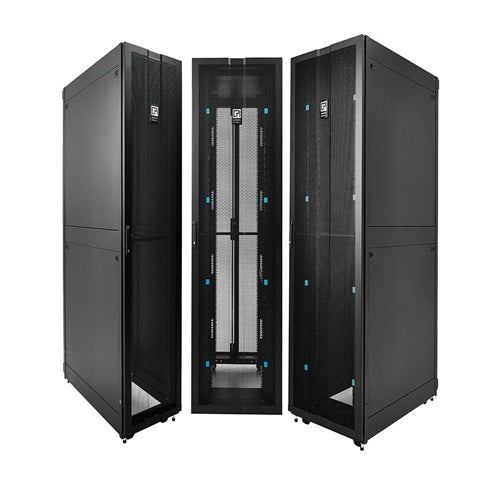

ZetaFrame Cabinet System Black ZB25-A2200-72

Product Information

Specification

About :

Solid single-piece top panel with large grommet-sealed cable openings in each corner contains airflow within the cabinet while allowing cables to enter/exit the top panel.

Specification :

Product Type : Cabinet System

Height : 84.6" (2149 mm) 45U

Width : 27.6" (700 mm)

Doors : Single Perforated Front/Double Perforated Rear.

Top Panel : Brush-Sealed

Side Panels : Two Side Panels

Bottom Panel : None

Thermal Management : None

Color : Black

Shipping : Shock Pallet

Features :

• Fast Selection and Customization – Wide range of standard configurations and one-on-one consultation services allow customers to create a unique solution that meets their exact requirements.

• Future-Proof Strength – Roll-formed, tubular and fully welded steel frame architecture supports 5,000 lb (2268 kg) static and 4,000 lb (1814 kg) dynamic loads

• Integrated Bonding – Doors and panels automatically bond to the frame through door hinges and contact points, eliminating the need for attaching separate grounding straps to cabinet components

• Enhanced Cable Management – ZetaFrame's simple and versatile cable management accessories can be used independently or in combinations to accommodate a wide variety of applications

• Integrated Airflow Management – Seamless integration with optional airflow management accessories ensures effective conditioned/exhaust air separation and maximum equipment cooling
