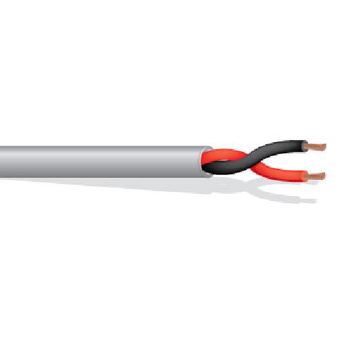

West Penn 25224B 18 AWG 2C 7x26 Stranded Bare Copper Unshielded Plenum CMP PVC Low Voltage Control Cable

West Penn 25224B 18 AWG 2C 7x26 Stranded Bare Copper Unshielded Plenum CMP PVC Low Voltage Control Cable

Allowable Ampacity for West Penn 25224B 18 AWG 2C 7x26 Stranded Bare Copper Unshielded Plenum CMP PVC Low Voltage Control Cable: 100 Amps

Applications:

• Indoor within ducts, plenums and other spaces used for environmental air:
• Intercom Systems
• Security Systems
• Sound and Audio
• Background Music
• Division 27 41 00
• Division 27 51 00
• Division 28 05 13

Also Known as:

West Penn Cable, Bare Copper Cable, Unshielded Cable, CMP Cable, Plenum Cable, Low Voltage Cable, Control Cable, West Penn 25224B.

Description:

• ASTM Bare Copper
• Polymer Alloy Insulation
• Cabled Construction
• Overall Flex Plenum Jacket

Construction:

• Conductor Type: Bare copper
• Insulation Type: Plenum PVC
• Jacket Type: Flexible Plenum
• Shield Type: None
• NEC UL Rating: CMP
• UL Flammability: NFPA 262 Plenum
• Operating Range: -0 to 60 Deg C
• UL Voltage Rating: 300

Specification:

• AWG Size: 18
• No Of Conductors: 2
• Conductor Stranding: 7x26
• Nominal DCR: 6.2 Ohm/1000ft
• Jacket Thickness: 0.015 inch
• Insulation Thickness: 0.008 Inch
• Nominal Cable O.D: 0.154 Inch
• Bend Radius: 1.386 Inch
• Weight (1000ft): 17.85 Lbs
• Part Number: 25224B
