Wall-mounting Sockets 32 A Series 8571/11-406-S-01-0-00-XXX
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Wall-mounting Socket |
| Rated operational voltage AC | 380 to 415 V AC |
| Rated operational current | 32 A |
| Type of voltage | Low voltage |
| Frequency range | 50 / 60 Hz |
| Back-up fuse with thermal protection | 63 A gG |
| Back-up fuse without thermal protection | 35 A gG |
| Enclosure material | Polyamide, Glass fibre reinforced |

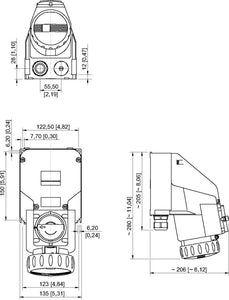

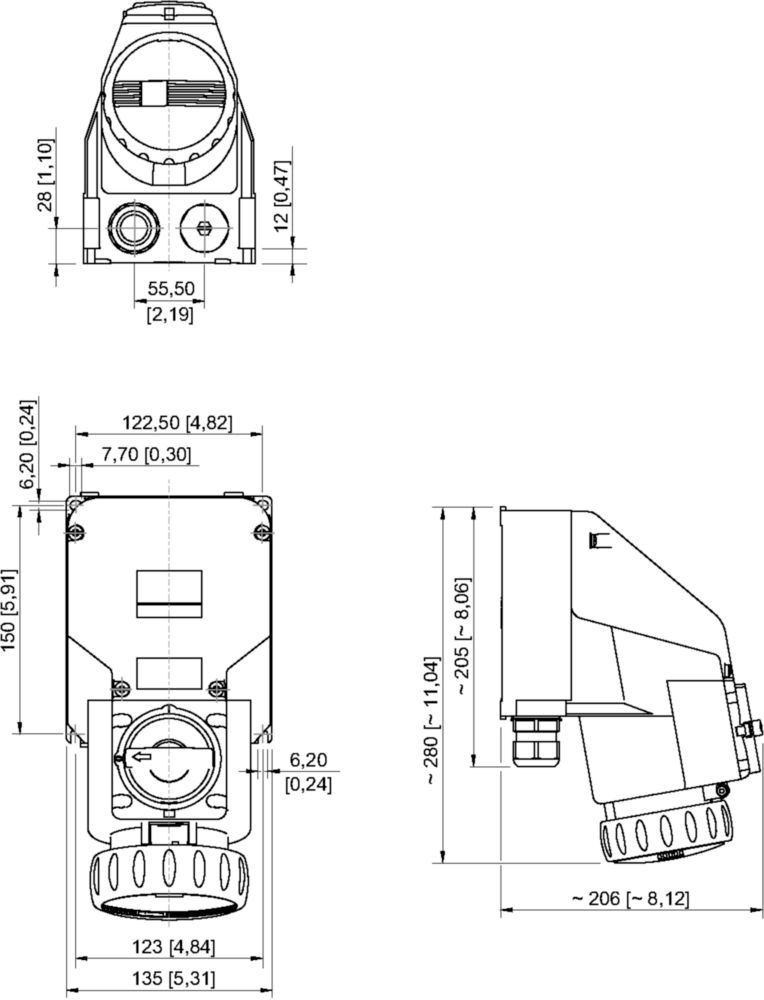

| Dimensions | H 8.1200 in x W 5.310 in x L 11.04 in |
| Colour code | red |
| Lockable in | in 0- and I-position |
| Interlock | Prevents the plug from being pulled under load |
| Series | SolConeX |
| Detailed number of poles | 3 P + PE |
| Part Number | 8571/11-406 |
Description :-:

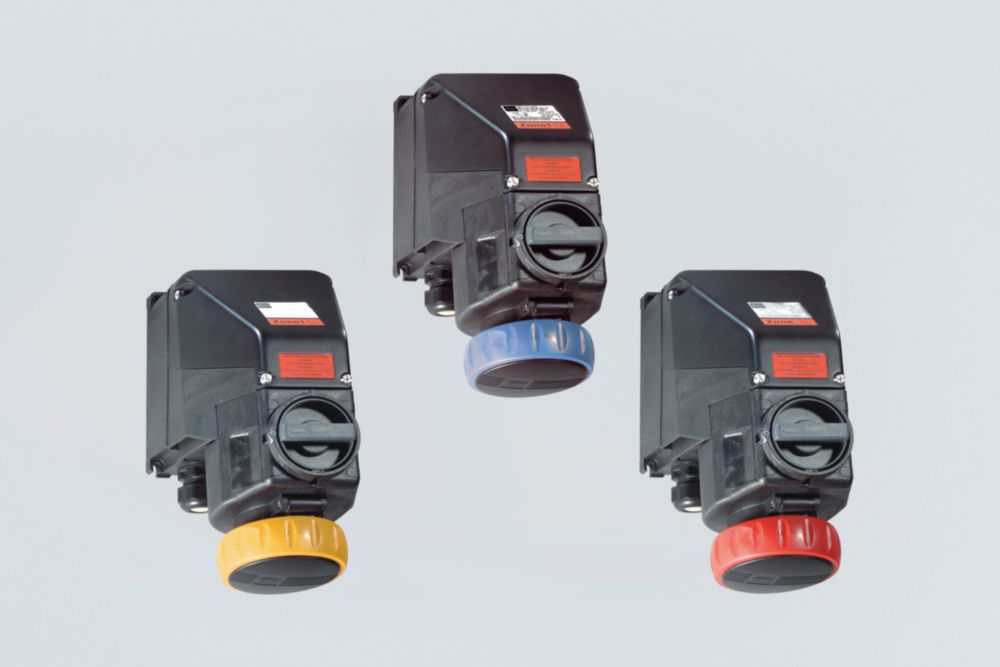

The R. STAHL 8571/11 series SolConeX sockets for Zone 1/21 in 4- and 5-pole versions have full AC-3 switching capacity up to 32 A. The high degree of protection IP66 ensures maximum protection against the ingress of dust and/or water in any application situation. Self-cleaning lamellar contacts provide optimum contact and the plugs can be inserted and removed in the zero position quickly and easily. The load disconnect switch, with mechanical locking device and a handle that can be locked in the 0 or I position, is an additional safety feature.
Key Features :-:
- ⦁ Further voltage ranges according to EN 60309
⦁ Silicone-free versions
⦁ Ex e or Ex i auxiliary contacts for control and signalling purposes ‒ can also be retrofitted
⦁ With NAMUR resistor circuitry
⦁ External earth connection
⦁ Customer-specific label plates
⦁ Plates also in stainless steel
⦁ Additional entries ‒ also in metal
Download PDF Spec Sheet
