Wall Mount with Cable Feedthrough PELCO SWM-GY

Product Information

Specification

Duty Rating	Light
Environment Type	In/Out
Mounting Type	Wall
Type	Mount

Wall Mount with Cable Feedthrough PELCO SWM-GY

Description:

The SWM Series indoor/outdoor wall mounts are designed primarily for use with Pelco pendant domes including Spectra®, DF5, Sarix® ID, and IE Series. They can also be used with other pendant domes that require a 1.5-inch NPT pipe thread for installation. Its unique design conceals the mounting bolts inside the mount, providing a clean and aesthetically pleasing appearance. It is easy to install and requires no special tools. Mount is secured by a set screw to a mounting plate that is attached to the mounting surface with two fasteners (not supplied) up to 0.25-inch (M6) diameter.

Features:

• For Use with Pelco Pendant Domes (Spectra®, DF5, and Sarix® ID and IE Series) that Require a 1.5-inch NPT Pipe Thread for Installation
• Low Cost
• Constructed of Cast Aluminum
• Cable Feedthrough Features
• Supports up to 4.5 kg (10 lb)
• Easy to Install, Using a Mounting Plate and Standard Tools
• Mounting Hardware is Concealed Within the SWM, Providing a Very Attractive Appearance
• Mounts Directly to a Vertical Load-Bearing Surface for Wall Mount Applications

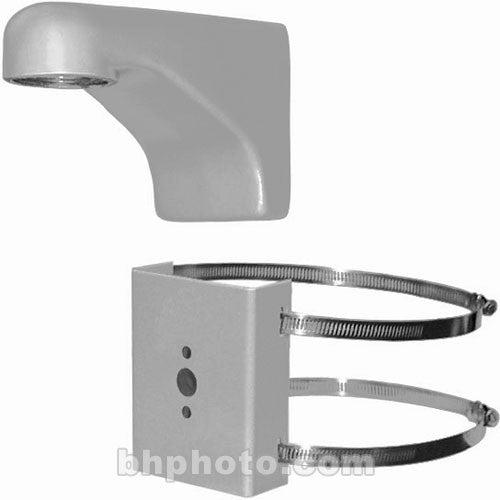

• Can be used with the SWM-PA Series Pole Adapter or SWM-CA Series Corner Adapter
• For Indoor or Outdoor Applications
