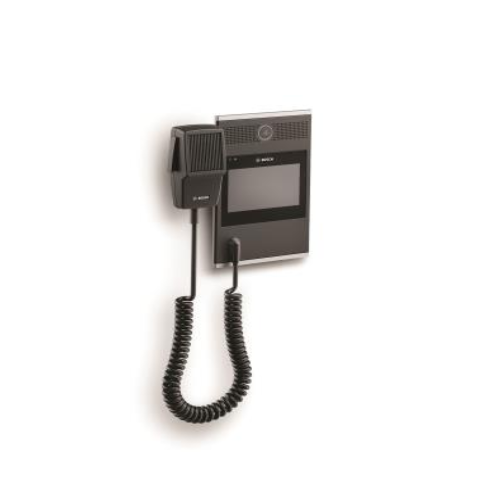

Wall Mount LCD Call Station PRA-CSLW

Product Information

Specification

About:

• This call station for use in Public Address and Voice Alarm systems is easy to install and intuitive to operate because of its touch screen LCD,
• Providing clear user feedback about setting up a call and monitoring its progress, or controlling back ground music.
• The call station allows for positioning without much effort, because it only requires a connection to an  IP‑network with Power over Ethernet for communication and power supply combined.

Also Known As:

Wall-Mounted Call Station with LCD Display, LCD Intercom Station, Wall-Mounted Communication Terminal, LCD Call Panel, Wall-Mounted Call Box with Display, Interactive Call Station, LCD Emergency Call Point, Digital Wall-Mount Intercom, Interactive Communication Panel, Wall-Mounted Talkback Station

Specification:

• Dimensions : 62 x 130 x 189 mm
• Display resolution :480 x 272
• Encryption: TLS
• Frequency response:  (-3 dB) (Hz) 20 – 20000 Hz
• Operating temperature (°C): -5 – 50 °C
• Operating voltage (VDC) :37 – 57 VDC
• Protection :Watchdog
• Sample rate :(kHz) 48 kHz
• Touchscreen: Capacitive
• Part no :PRA-CSLW

Features:

• Wall mount housing with detachable fist microphone and coiled cable
• 4.3" full‑color capacitive touch screen
• Graphical user interface for optimum user guidance and feedback
• Status and fault indicators for voice alarm purposes
• Dual OMNEO IP‑network connection and redundant Power over Ethernet
