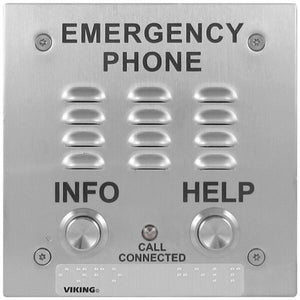

Viking E-1600-20-IPEWP – Two Button VoIP Emergency Phone with Enhanced Weather Protection
About :
The E-1600-20-IPEWP ADA and CE Compliant VoIP Emergency Phone is a handsfree emergency communication device for SIP VoIP systems with PoE. It meets ADA requirements for elevator emergency phones and can be programmed via phone, PC, or remotely using a static IP. The Help button dials up to 5 emergency numbers, while the Info button dials up to 5 non-emergency numbers. It can deliver a digital announcement or DTMF code to identify the call location and features a “Call Connected” LED. Powered by PoE, it stores all settings in non-volatile memory. With Enhanced Weather Protection (EWP), it's suitable for outdoor use.
Also Known As :
Emergency Phone, Emergency Call Box, Help Point Phone, Hot Line Phone
Specification :
|
Door Phone Type |
Emergency, Outdoor, Push Button, Surface Mount |
| Power | PoE class 1 (<4 Watts) |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Humidity | Up to 100% |
| Audio Codecs | G711u, G711a, G722 |
| Network Compliance | IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over |
| Material | 14 gauge 316 stainless steel with #4 brushed finish |
| Included Hardware | (4) 6-32 X 3/4″ marine grade 316 stainless steel, flat head, T-10 Torx security screws |
| Connections |
(1) RJ45 10/100 Base-T, (3) gel-filled butt connectors |
Core Features :
• Automatic polling and programming software included
• 2 Amp relay contacts to control an SL-2 Strobe Light (DOD 242) or LV-1K Line Verification Panel (DOD 246)
• Red “Call Connected” LED indicator
• SIP compliant (see Product Manual for list of compatible IP-PBX phone systems)
• PoE powered (class 1, <4 Watts)
• Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
• VoIP audio detection eliminates the need for “Push to Talk” mode
• Network downloadable firmware
• Handsfree operation
• Non-volatile digital voice announcer with 28 seconds of voice memory
• Help button dials up to 5 emergency numbers
• Info button dials up to 5 non-emergency numbers
• Cycles through backup phone numbers on busy or ring-no-answer
• Hangs up on busy signal, time-out or touch tone command
• Remotely programmable
• Diagnostics for testing mic, speaker, relay
• Flush mount using the included rough-in box or surface mount using a VE-5×5 Surface Mount Box (DOD 424)
• Extended temperature range: -40°F to 140°F (-40°C to 60°C)
Download PDF Spec Sheet
