About:

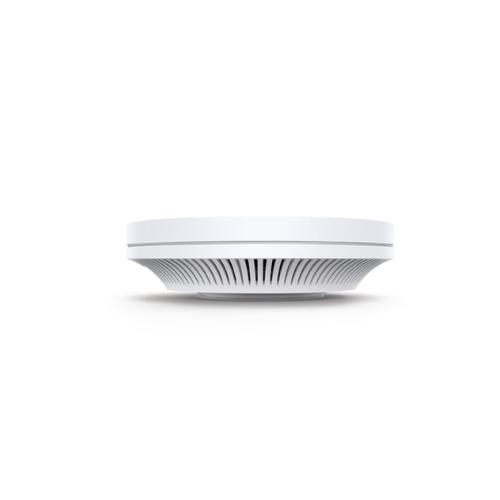

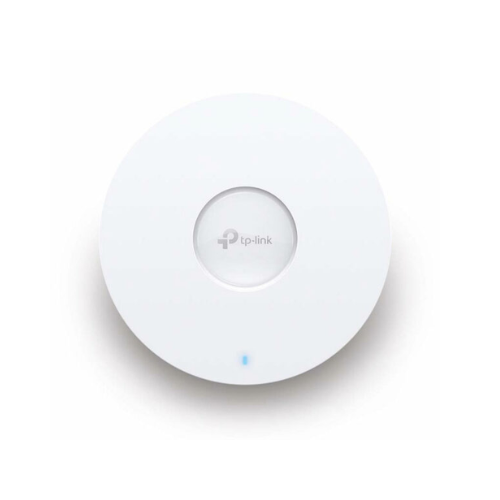

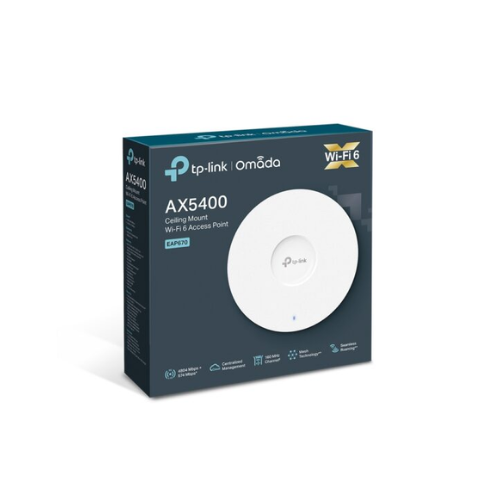

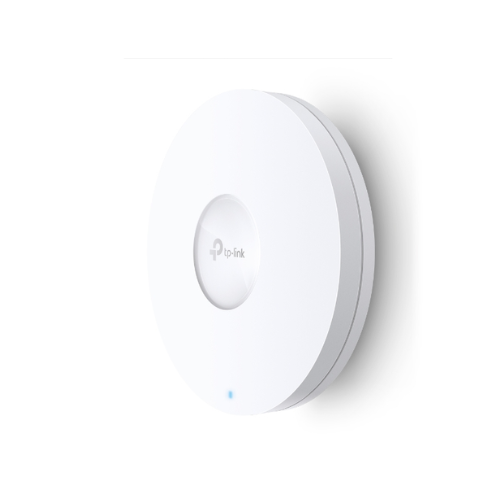

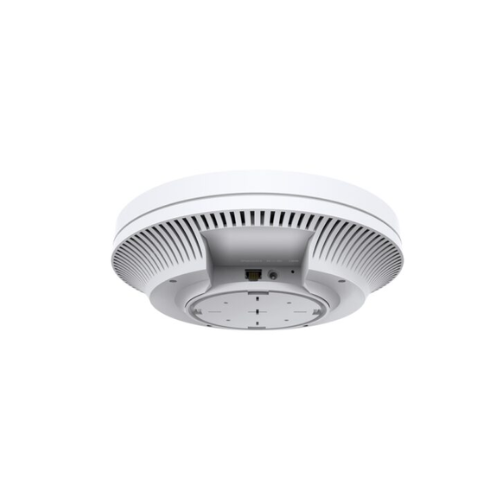

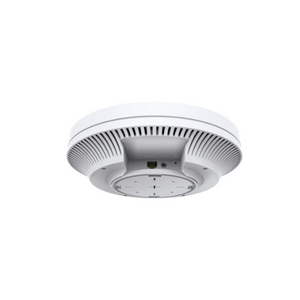

The TP-Link EAP670 is an Omada WiFi 6 AX5400 wireless ceiling mount access point featuring a 2.5G port. It comes with a limited lifetime warranty and supports Mesh, OFDMA, seamless roaming, HE160, and MU-MIMO. It integrates with the SDN, offers cloud access and can be managed via the Omada app. Additionally, it is powered by PoE+.
Also known as:
Wifi Access Point, Wifi 6 Point, 2.5G Wifi Port, Ceiling Mount Wifi Point.
Specifications:
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Network Band | Dual Band |
| Frequency Band | 2.4 Ghz, 5 Ghz |
| Mounting Options/Type | Ceiling, Wall Plate |
| Product Family | Omada Cloud Management |
| Weight | 3.13 lbs |
| Dimensions | 11.97 × 11.89 × 3.23 in |
| Part Number | TPL-EAP670 |
Hardware Features:
| Interface | 1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
|---|---|
| Button | Reset |
| Power Supply | • 802.3at PoE • 12 V / 1.5 A DC |
| Power Consumption | US: 19.8 W |
| Antenna Type | Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 4× 5 dBi |
| Mounting | Ceiling /Wall Mounting (Kits included) |
Features:
• Blazing-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz totals 5378 Mbps WiFi speeds.
• High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
• Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
• 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
• Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
• Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
• PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
