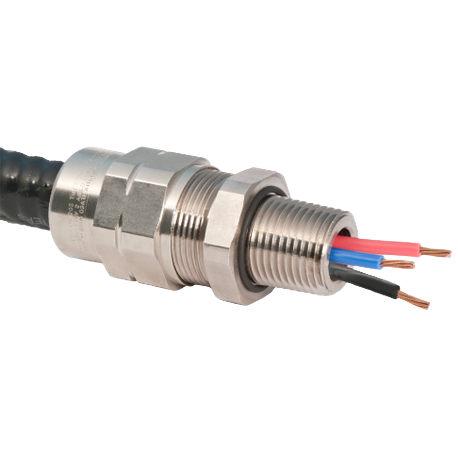

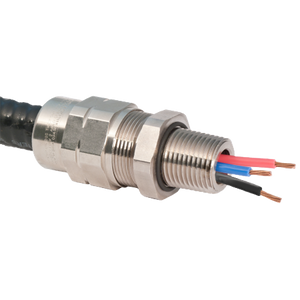

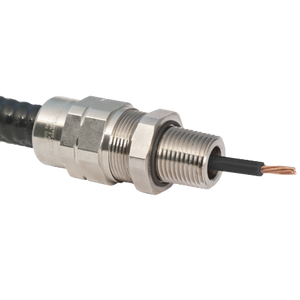

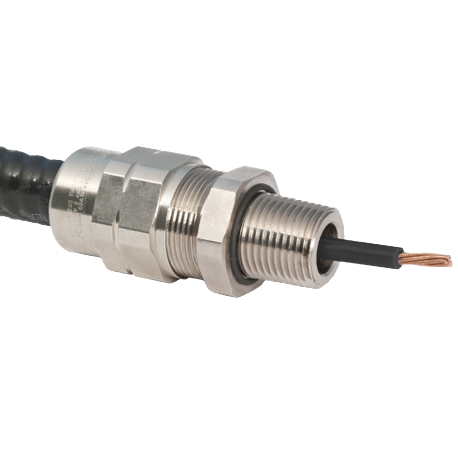

TMC2 Aluminum Cable Gland Connector For Mc, Mc-hl, Interlocked, And Teck Armored Cables
Description:
TMC2 aluminum globally approved, hazardous location cable gland. For MC, MC-HL, interlocked, and teck armored cables.
Specifications:

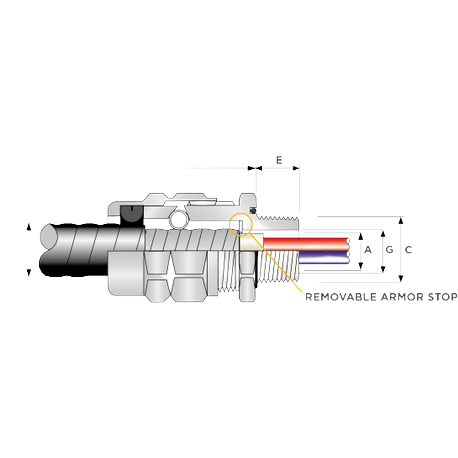

| Across Corners ‘D’ Max | 1.99 |
|---|---|
| Across Flats ‘D’ Max | 1.81 |
| Aluminum Weight (oz) | 5.11 |
| Cable Armor Diameter ‘A’ Armor Stop In Max | 0.86 |
| Cable Armor Diameter ‘A’ Armor Stop In Min | 0.79 |
| Cable Armor Diameter ‘A’ Armor Stop Out Max | 1.1 |
| Cable Armor Diameter ‘A’ Armor Stop Out Min | 0.86 |
| Cable Jacket Diameter ‘B’ Max | 1.18 |
| Cable Jacket Diameter ‘B’ Min | 0.87 |
| Entry Thread ‘C’ NPT | ¾” |
| Manufacturer | CMP |
| Material | Aluminum |
| Minimum Thread Length 'E' | 0.8 |
| Nominal Assembly Length ‘F’ | 3.15 |
| Shroud | PVC11 |
| Thru Bore ‘G’ Max | 0.82 |
| Part Number | TMC2-075A118 |
Download PDF Spec Sheet
