Surface Raceway Off White LD10/LDPH10 Right Angle RAFC10IW-X (Pack of 10)

Product Information

Specification

Surface Raceway Off White LD10/LDPH10 Right Angle RAFC10IW-X

About:

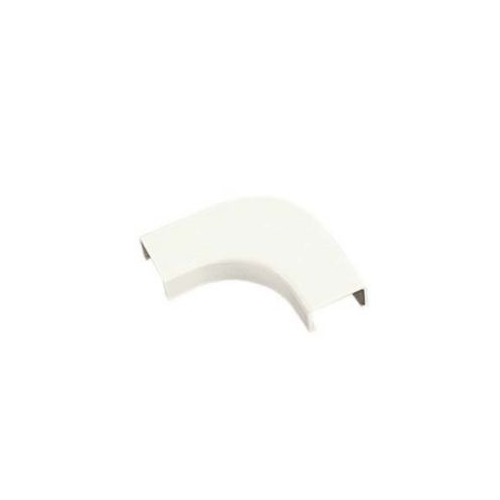

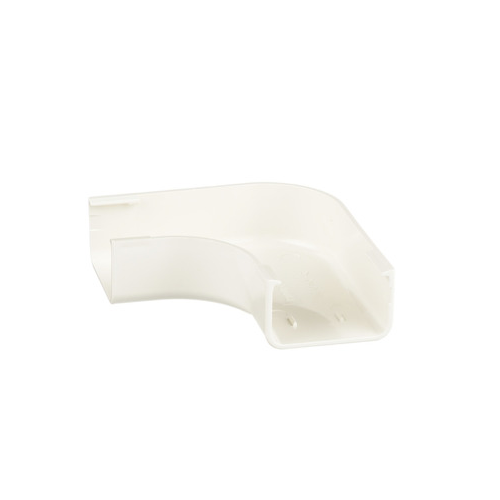

The Right Angle Fitting is a one-piece raceway fitting designed to transition your raceway around a corner. This raceway fitting is made to be used with the LD10/LDPH10 raceway. It is a snap-on installation. It measures 2.5” in length. It is constructed with rigid PVC and is Off-White.

Also Known As:

Bend Radius Control Fitting, Right Angle Fitting, PVC Material, Off White Color

Features:

1 bend radius control fittings, One-piece hinged design, Adhesive backing, Available in different sizes & lengths, Non-metallic construction, Distinct colors and Full selection of fittings and surface mount boxes.

Application:

Pan-Way LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings.

Specification:

Product Type	Bend Radius Control Fitting
Color	Off White
Fitting Type	Right Angle
For Use With	LD10, LDPH10
Material	PVC
Material Properties	Rigid
Mount Method	Snap-On
Raceway Type	Low Voltage
Overall Length (In.)	3.18
Overall Length (mm)	80.8
Overall Width (In.)	3.18
Overall Width (mm)	80.8
Overall Height (In.)	0.93
Overall Height (mm)	23.6
Part No.	RAFC10IW-X
