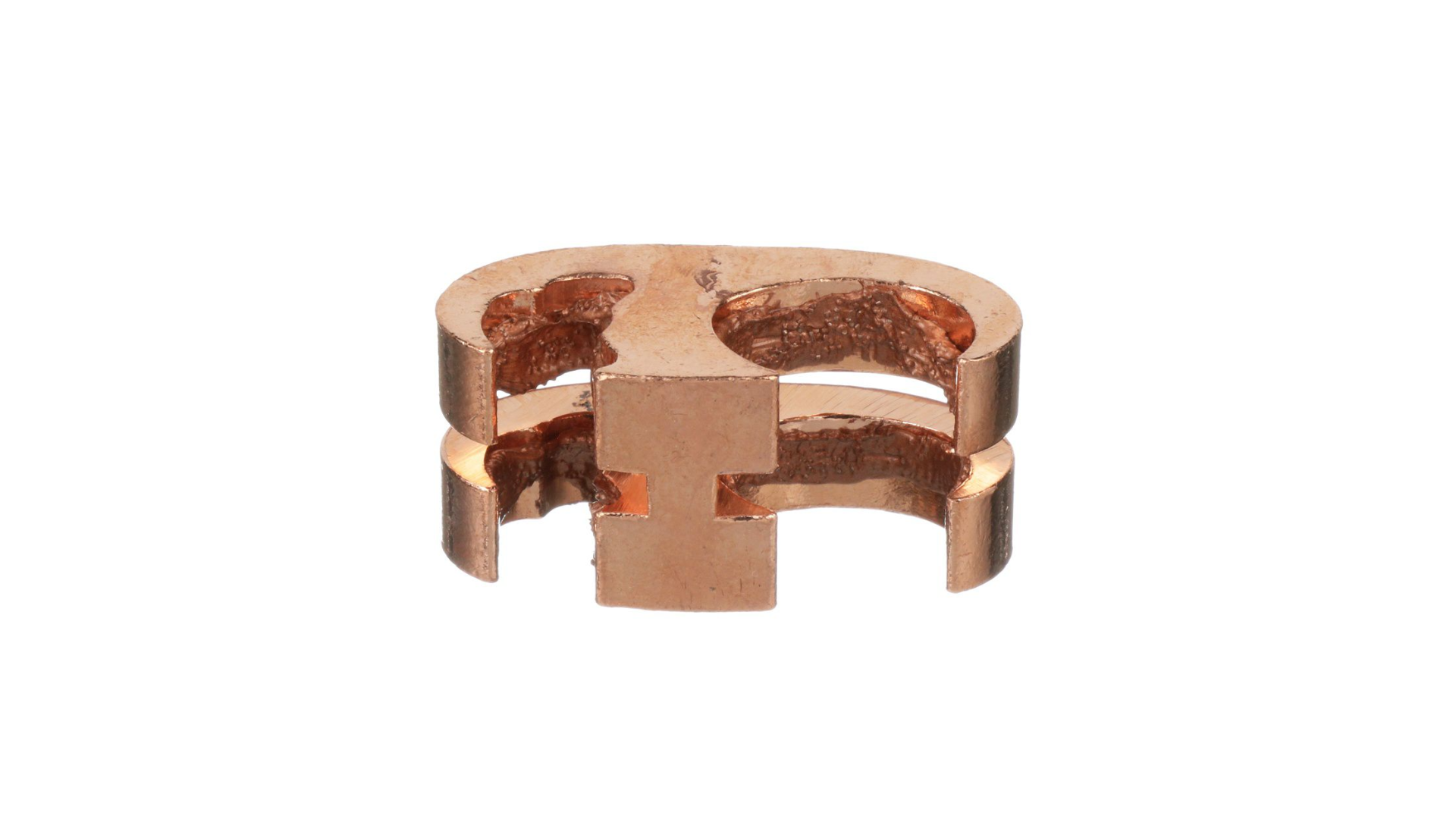

StructuredGround™ E-Tap, 1/0-1/0 PANDUIT GCE1/0-1/0
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Sub Brand | StructuredGround™ |
| Connector Type | E-Style Connector |
| Length (In.) | 0.94 |
| Material | High Conductivity Copper |
| Width (In.) | 0.66 |
| Height (In.) | 1.72 |
| Maximum Copper Conductor Size (AWG STR) | 1/0 |
| Minimum Copper Conductor Size (AWG SOL) | 6 |
| Panduit Die Index Number | PG10 |
| Color Code | Red |
| Standards Met | IEEE Std 837-2002, cULus listed, UL467, CSA 22.2 |
| Application | Utility/Ground Grid |
StructuredGround™ E-Tap, 1/0-1/0 PANDUIT GCE1/0-1/0
Description:
The GCE1/0-1/0 E Style Grounding Connector is designed to enhance the crimp process using technology that meets IEEE STD 837 - 2002 and REV 2014. Has a wide-range taking ability; multi-conductor design provides flexibility with minimum number of parts. Slotted design allows quick, easy assembly while the pre applied conductive antioxidant compound ensures a high quality mechanical and electrical bond. UL467 & CSA22.22 certified for grounding, bonding and is suitable for direct burial in earth or concrete.
Download PDF Spec Sheet
