StrongHold Professional Grade Electrical Tape Black ST88-075-66BK
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

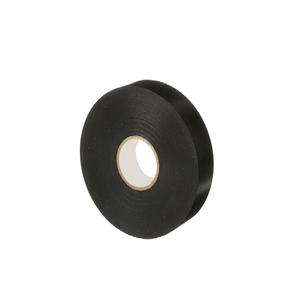

StrongHold ST88-075-66BK Heavy Duty PVC Electrical Tape is an all-weather, pressure sensitive vinyl electrical tape that applies easily and provides a high level of performance over a range of temperatures. It is .75" x 66' x .0085” in size, black in color and comes individually cellophane wrapped. Suitable as primary insulation when used for splicing up 600 Volts or 80∘C (176∘F) and can be used as protective outer jacket in low temperature applications.
Specification :
| Sub Brand | StrongHold |
| Product Type | Heavy Duty Electrical Tape |
| Color | Black |
| Material | PVC |
| Adhesive Material | Rubber |
| Overall Thickness (In.) | 0.0085 |
| Overall Thickness (mm) | 0.21 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19 |
| Overall Length (ft.) | 66 |
| Overall Length (m) | 20 |
| Tensile at Break (N/cm) | 38 |
| Tensile at Break (kg/mm) | 0.39 |
| Elongation at Break (%) | 300 |
| Adhesion to Steel (N/cm) | 2.2 |
| Adhesion to Steel (oz/in) | 20.1 |
| Adhesion to Backing (N/cm) | 2.2 |
| Adhesion to Backing (oz/in) | 20.1 |
| Flammability Rating | UL 510 Flame Retardant |
| Flagging (mm) | 0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Minimum Operating Temperature (°C) | -18 |
| Minimum Operating Temperature (°F) | 0 |
| Dielectric Strength Standard (kV) | 10 |
| Dielectric Strength Wet (90%) (kV) | 8.1 |
| Insulation Resistance (MΩ) | 1.E+06 |
| Standards Met | Meets ASTM D-3005, Type 1; EN 60454-3-1, Type 11; UL 510 CSA C 22.2 No 197; Meets 2000/53/EC and RoHS 2011/65/EU directives |
| Compliance Certifications | CSA Certified, UL Listed |
| Environment | Indoor/Outdoor |
| Application | Contractor, Electrical Construction, Industrial Construction, Manufacturing, Maintenance and Repair |
| Durability (yr) | 5 |
| Tape Style | Heavy Duty |
Download PDF Spec Sheet
