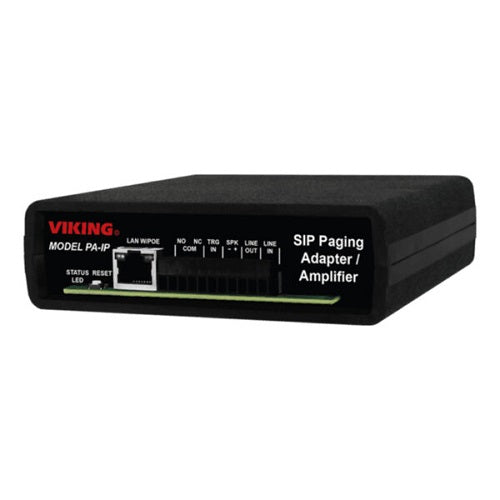

Viking PA-IP – SIP/Multicast Paging Adapter with Amplifier
About :
The Viking model PA-IP SIP / Multicast Paging Adapter provides an interface between new VoIP phone systems (hardware or hosted / cloud based) and analog paging systems, eliminating the need for an ATA or FXS port. The PA-IP can be used for standard SIP endpoint paging or multicast paging and background music.
Also Known As :
Paging Adapter, Paging Gateway, PA System Adapter, Paging Module, Paging Interface, Paging Interface Unit
Specification :
|
Paging Unit Type |
Amplifier |
| Power | PoE class 3 (<13 Watts) |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Audio Codecs | G711u, G722, and G711a (SIP only) |
| Network Compliance | IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over |
| Amplifier | 6 Watt class D (capable of driving up to six 8 Ohm speakers connected in parallel) |
| Connections |
(1) RJ45 10/100 Base-T, (8) cage clamp screw terminals on pluggable connector |
Core Features :
• PoE powered (class 3, <13 Watts)
• Paging prioritization
• Plays audio from multicast
• SIP endpoint or multicast group member
• Supports up to 10 multicast paging groups
• Red “Page / Status” LED indicator
• SIP compliant (see product manual for list of compatible IP-PBX phone systems)
• Network downloadable firmware
• Autoprovisioning via Viking programming software
• Built-in high efficiency 6 watt class D amplifier
• Relay for activating door locks, strobe lights, external amplifiers, etc.
• SIP / Multicast: SIP page, SIP page and zoned multicast stream, zoned Multicast receive
• Support for access code to prevent unwanted SIP calls
• Line-level audio output for connecting to an external amplifier
• Network remote volume control
• Can drive up to 6 external analog 8 Ohm speakers
• Diagnostics (for testing the relay)
