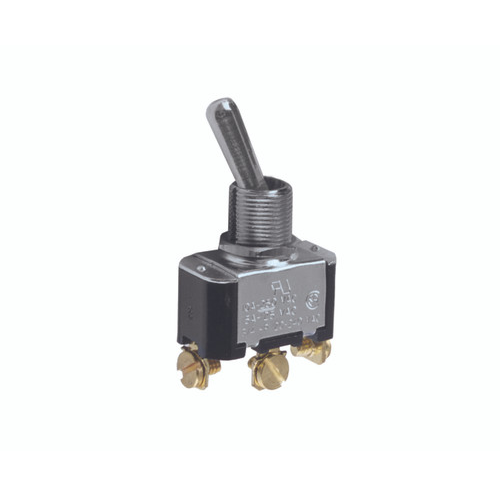

Single Pole Metal Bat Toggle Switch Guard

Product Information

Specification

Single Pole Metal Bat Toggle Switch Guard

Also Known As:

Single Pole, Metal Bat, Switch Guard, Double Throw, Single Throw

About:

A Bat toggle switch is an electrical switch that is named for its shaped handle. This handle is designed for easy actuation. Frequently, they are covered with a protective boot for added durability. Commonly, bat toggle switches are built to be used in low-voltage, high amperage applications. Bat toggle switches are the ideal choice when you need to add a simple power switch on your boat or vessel. To make them even better, bat toggle switches are also available in more options in order to handle a variety of applications. All the bat toggle switches that Pacer offers are rated at 15A/120VAC. Choosing the proper bat toggle switch for your application is not an easy task.

Construction :

• Base Material: Phenolic
• Actuator (Bat): Brass/Nickel Plated
• Bushing: Brass/Nickel Plated
• Dielectric Strength: 100 V Min.
• Insulation Resistance: 100 Mega Ohm
• Terminal: #6-32NC-2
• Bushing Length: 0.468"
• Panel Mounting Hole: 1/2" Diameter

Features :

• Screw Terminal Connection
• Brass/Nickel Plated for durability

Applications :

• Suitable for both AC and low voltage DC applications
• Commonly used in Marine, Food Service, Generator, Industrial Controls, and Automation markets

Standerds:

• UL
• CSA
• VDE

Ratings :

• 15 Amp 125-VAC
• HP 125-250-VAC
• 10 Amp 250-VAC, 3/4"

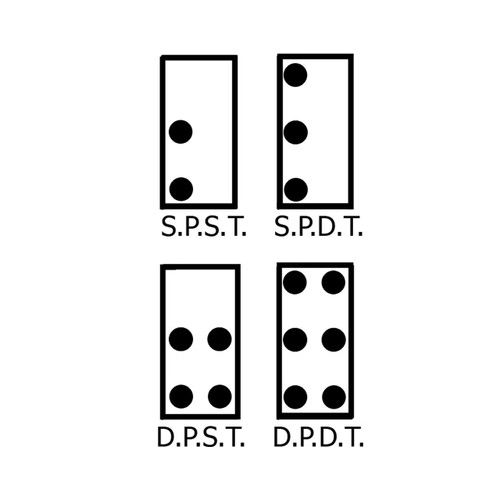

Specifications:

• ON - OFF - Single Pole, Single Throw
• ON - ON - Single Pole, Double Throw
• ON - OFF - ON - Single Pole, Double Throw (Center Off)
• ON - ON - ON - Single Pole, Triple Throw
