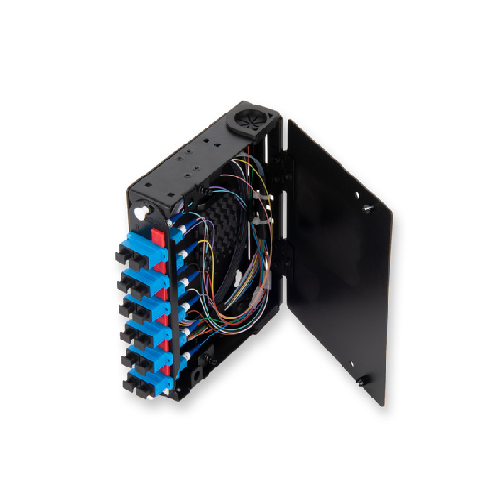

Single-Panel Housing Pigtailed 12 F (OS2) single fiber 250 µm SPH-CS12-A9-P00RE
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Fiber Optic Hardware |
| Fiber Category | Single-mode (OS2) |
| Mounting Type | Wall-Mountable |
| Application | Enterprise Networks, LAN, LAN/FAN Applications, Private network environments |
| Technology | Fusion Splice |
| Fiber Count | 12 |
| Housing Material | Metal |
| Number of Cable Entries | 2 |
| Part No | SPH-CS12-A9-P00RE |
Single-Panel Housing Pigtailed 12 F (OS2) single fiber 250 µm SPH-CS12-A9-P00RE
DESCRIPTION :
Corning's single-panel housing is a cost-effective option for storage, protection and termination of optical fiber cables in applications with minimal mounting space. The housing accepts standard LANscape solution CCH connector panels. The pigtailed SPH 01P is preloaded and prerouted for quick fusion splicing of individual fiber pigtails using the same space-saving platform as the standard SPH-01P.
FEATURES :
Ready at a moments notice
⦿ By keeping a few pigtailed SPH-01Ps on hand, the contractor and/or end user will always be ready
Pigtailed panel and heat shrinks included
⦿ All-in-one product saves on order and installation time
Small wall-mount housing for pre-term or field term
⦿ Minimal mounting space required, Box-in-a-Box
Stackable
⦿ Grow capacity without more wall space
Built in splice tray
⦿ Cable and fiber management, protection
DIN/Hat Rail Mountable
⦿ Versatile mounting options
Metal housing with smooth, black powder coat finish
⦿ Durability with better label adhesion
LANscape Solutions
⦿ Complexity reduction and adapter panel availabiliy
Download PDF Spec Sheet
