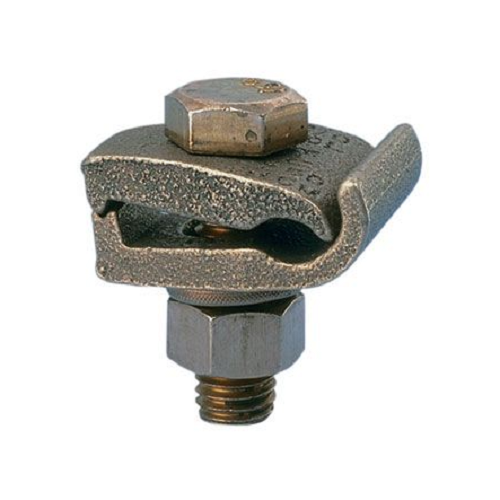

Silicon Bronze Grounding Clamp GM-2-Q (Pack of 25)

Product Information

Specification

About:

• A Silicon Bronze Grounding Clamp is a type of electrical connector used in grounding and bonding applications. It serves the purpose of establishing a secure and low-resistance connection between grounding conductors or cables and metallic structures, such as ground rods, pipes, or equipment enclosures.
• Silicon bronze is a type of copper alloy known for its excellent electrical conductivity, corrosion resistance, and mechanical strength. Grounding clamps made from silicon bronze offer superior durability and performance, particularly in outdoor or corrosive environments.
• Silicon Bronze Grounding Clamps come in various designs and sizes to accommodate different grounding applications and conductor types. They may feature adjustable or serrated jaws to provide a secure grip on grounding conductors, pipes, or other surfaces.

Also Known As:

Bronze Grounding Clamp, Bronze Grounding Connector, Silicon Bronze Ground Clamp. Silicon Bronze Bonding Clamp, Silicon Bronze Grounding Lug, Bronze Grounding Terminal, Silicon Bronze Earth Clamp, Silicon Bronze Grounding Coupling, Silicon Bronze Grounding Fitting, Bronze Grounding Fixture.

Specification:

Product Type	Grounding Clamp
Material	Silicon Bronze
Width	1.13 In
Length	1.63 In
Height	1.75 In
Application	Utility/Ground Grid
Standards Met	cULus LISTED TO UL467, Direct Burial Rated
Part No.	GM-2-Q

Features:

• Cast from high strength, electrolytic bronze to provide reliable grounding connections.
• High strength silicon bronze hardware for long term reliable assembly.
• Accommodates a wide range of conductor sizes minimizes inventory requirements.
• Incorporates spacer plate to separate conductor from mounting surface.
• UL Listed for grounding and bonding and suitable for direct burial in earth or concrete.
• Used to ground copper code conductor to flat surfaces.
