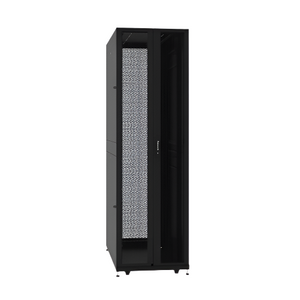

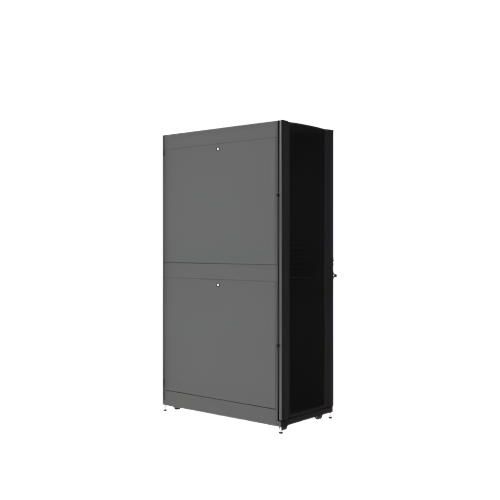

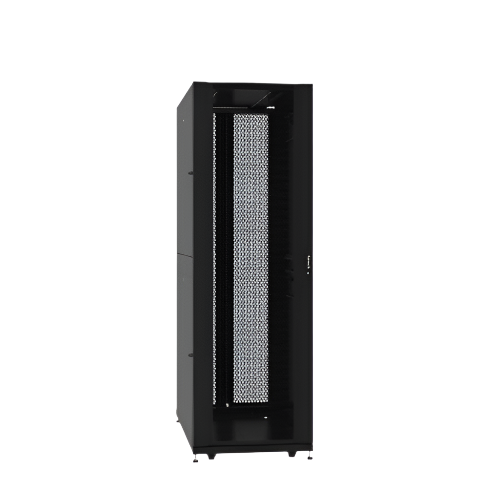

Server Rack 48U 600W x 1200D mm Data Center Enclosure Cabinet Black
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
The RCS cabinet is a versatile 48U cabinet, ideal for low to medium-density server and networking device housing in IDF and MDF applications. With 600mm x 1200mm dimensions, it features a compact width that maximizes space efficiency in wiring closets and data centers—all at a low cost.
Also known as:
48u server rack, server racks, server cabinet, server rack cabinet, network rack, data cabinet, network cabinet, rack mount, rack mount server.
Product Information:
|
Rack Height |
48U |
| Height | 78.72"in/1,999.5mm |
| Width | 23.62"/600mm |
| Depth | 47.24"/1200mm |
| Rack Width | 19” |
| Mounting Depth | Min.: 7.5in (190.5mm) Max.: 41.28 in (1,048.5mm) |
| Weight Capacity | 2,645.55 lb (1,200kgs, dynamic load) 3,306.93 lb (1,500kgs, static load) |
| Net Weight | 352.74 lb (160kgs) |
| Color | Black |
| Protection | Class IP20 |
| Approvals | UL2416, UL60950-1 |
Features:
• Cable Access Roof
• 0U Full Length Accessory Channel
• Easily Adjustable Vertical Mounting Rails
• Comprehensive Grounding System
• Preinstalled & Heavy Loading Casters and Leveling Feet
• Half Height Side Panels
Download PDF Spec Sheet
