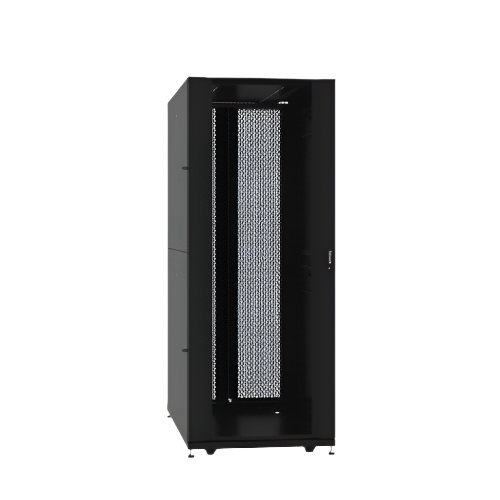

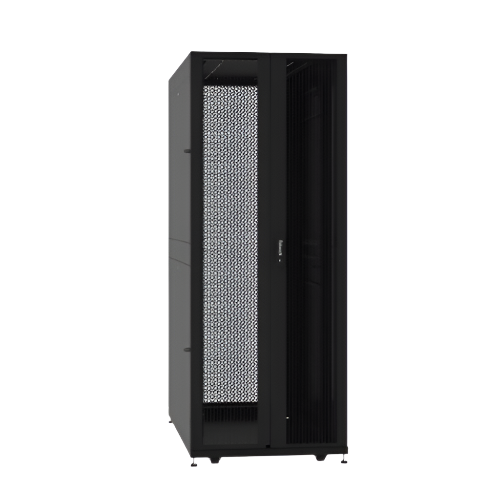

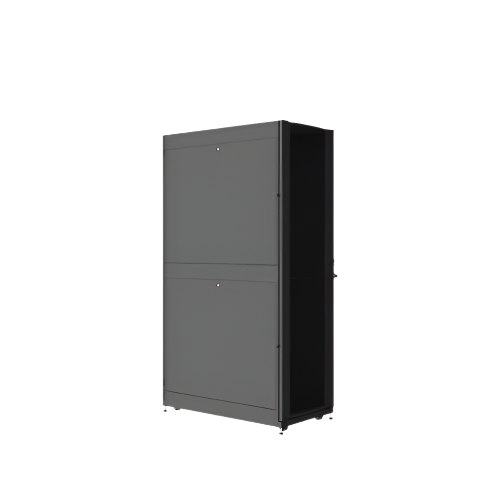

Server Rack 45U 750W x 1070D mm Data Center Enclosure Cabinet Black
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
The RCS cabinet is ideal for housing low to medium-density servers and networking devices in IDF and MDF applications. With its 45U size and dimensions of 750mm x 1070mm, this cabinet features a compact width that optimizes space efficiency in wiring closets and data centers. Best of all, it comes at an affordable price, making it a cost-effective choice.
Also known as:
45u server rack, server racks, server cabinet, server rack cabinet, network rack, data cabinet, network cabinet, rack mount, rack mount server.
Product Information:
|
Rack Height |
45U |
| Height | 83.62"in/2,124mm |
| Width | 29.52"/750mm |
| Depth | 42.12"/1070mm |
| Rack Width | 19” |
| Mounting Depth | Min.: 10.31 in (261.9mm) Max.: 36.02 in (914.9mm) |
| Weight Capacity | 2,645.55 lb (1,200kgs, dynamic load) 3,306.93 lb (1,500kgs, static load) |
| Net Weight | 287.04 Lb(130.20kg) |
| Color | Black |
| Protection | Class IP20 |
| Approvals | UL2416, UL60950-1 |
Features:
• Cable Access Roof
• 0U Full Length Accessory Channel
• Easily Adjustable Vertical Mounting Rails
• Comprehensive Grounding System
• Preinstalled & Heavy Loading Casters and Leveling Feet
• Half Height Side Panels
Download PDF Spec Sheet
