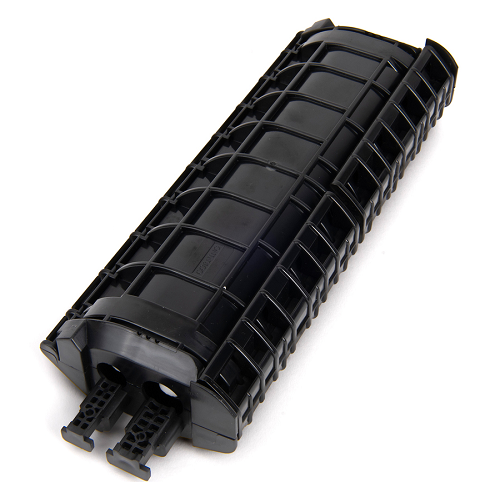

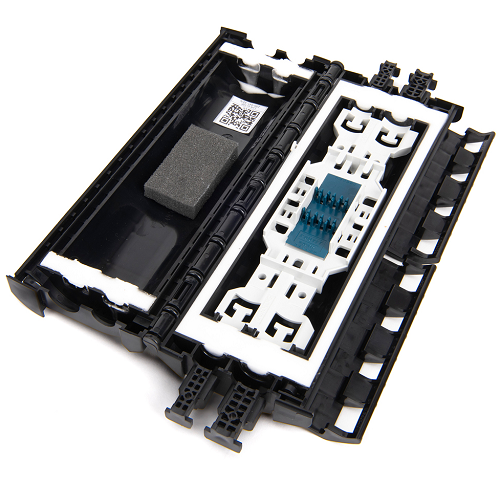

Ribbon Splice 2 SC Fiber Drop Repair Closure 12 Single Fiber OSC-1-40-00-21

Product Information

Specification

About:

The OSC Family provides an efficient, cost-effective, and versatile solution for repairing damaged customer drops and extending cable infrastructure. By avoiding complete cable replacements, telecom providers can optimize repair operations, save costs, reduce repair time, and minimize customer disturbances. Additionally, the OSC Family's small derivation closure footprint allows for seamless integration in various deployment scenarios, ensuring hassle-free expansion of services.

Specifications:

Product Type: Splice Closure
Cable Type: Drop
Environment: Outdoor
Height: 49 mm (1.93 in)
Width: 295 mm (11.61 in)
Capacity (number of splices): 12
Central member fixing for main cable: Yes
Closure Shape: In-Line
Crimp splice count per tray: 12
Distribution cable port count: 2
Distribution Port Count: 2
Distribution cable range: 4 mm to 6.5 mm (0.16 in to 0.26 in)
Extra buffer storage system: Installed
Main cable range: 4 mm to 8 mm (0.16 in to 0.31 in)
Max number of trays: 1 Own
Maximum splice fiber capacity: 12 splices
Number of Cable Entries: 4
Number of Distribution/Drop Cables ports: 4
Number of Ports: 4
Sealing Type: Gel
Splice Tray Capacity Mass Fusion: 12 to 36
Splice Tray Capacity Single Fiber: 1 to 12
Number of single-fiber ports, SC APC connector: 2
Part Number: OSC-1-40-00-21

Features:

• Efficient customer drop repair
Cost savings by avoiding complete cable replacements and reduced repair time and customer disturbances.
• Cable extensions
Streamlined process for extending existing infrastructure.
• Small derivation closure footprint.
Versatile deployment options for various scenarios.
