PVC T-45 Low Voltage Surface Raceway Fittings 10FT T45CEI10
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

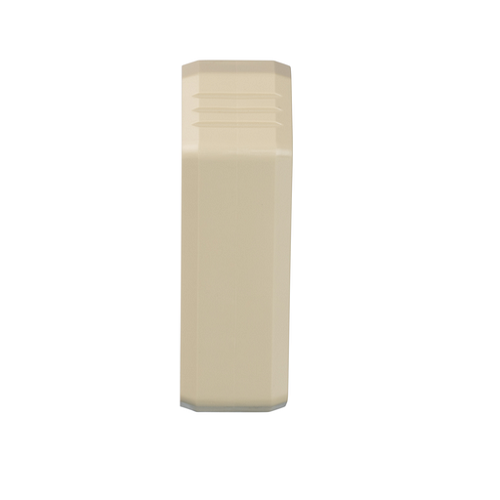

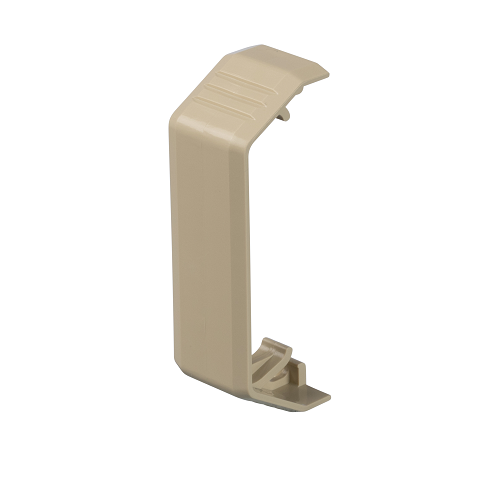

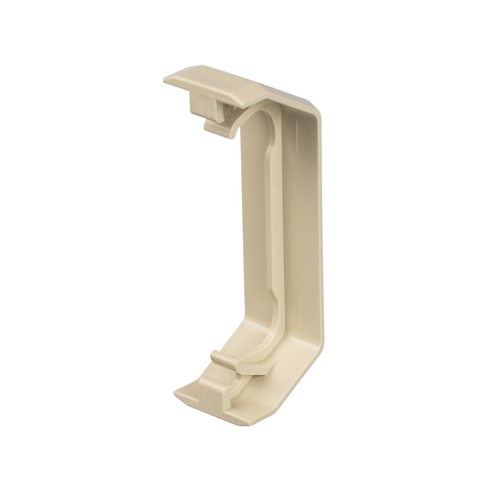

The T-45 Power Rated Raceway Cover is designed to snap on to the base to create a tamper resistant cable routing solution along perimeter walls. It is 10 ft and Electric Ivory
Also Known As :
Conduit Track Fittings, Cable Raceway Accessories, Fittings, Wire Channel Fittings, Cable Management Fittings, Surface Duct Fittings
Specification :
| Product Type | Surface Raceway Channel |
| Fitting Type | Channel |
| Sub Brand | Pan-Way |
| Color | Electric Ivory |
| Material | PVC |
| Raceway Type | Low Voltage |
| Mount Method | Screw-On |
| Standards Met | UL Listed 95425, UL Listed E116129 , NEC: Article 388, LP-CSISPEC-T45-1, RoHS Compliant. |
| Overall Length (ft.) | 10 |
| Overall Length (m) | 3 |
| Overall Width (In.) | 2.38 |
| Overall Width (mm) | 60.4 |
| Application | Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls. |
| Part Features | T-45 raceway cover. Overall raceway dimension (T-45 base and cover): 2.38 x 1.25 (60.3mm x 32.0mm) Hinged cover allows easy access from either side. Tamper resistant. Terminates using the T-45 hinged data or power brackets, offset box or surface mount box solutions. |
Features :
• Hinged cover allows easy access from either side
• Tamper-resistant
• Terminates using the T-45 hinged data or power brackets, offset box or surface mount box solutions
Download PDF Spec Sheet
