About:

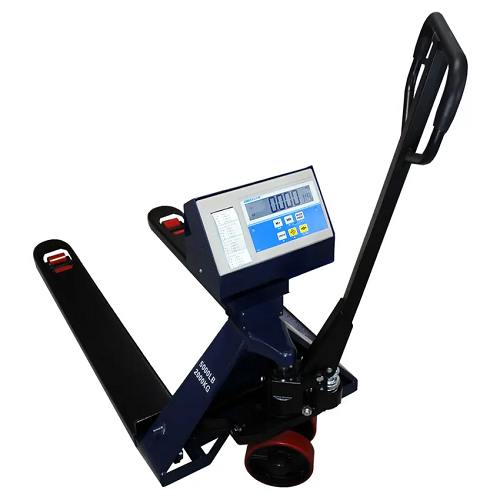

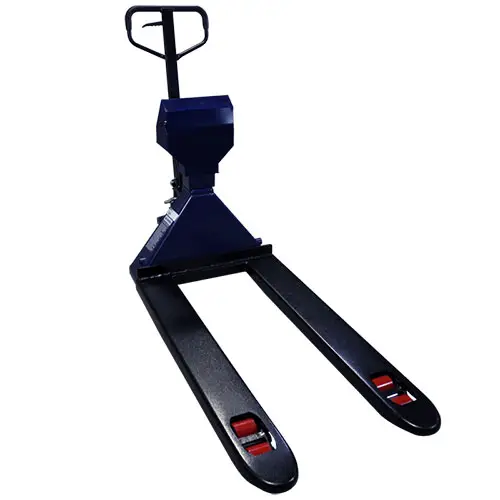

The PTT pallet truck scale is designed for efficient transport of pallets and heavy items, featuring durable steel pallet forks, swivel wheels for smooth maneuverability, and an audible alarm that sounds when capacity is exceeded. Built for heavy-duty weighing, the PTT combines robust construction with advanced features such as zero-tracking, auto-clear, checkweighing, and parts counting. Its large display includes an integrated printer capable of printing barcodes, QR codes, images, and custom logos on 50mm-wide sticky labels. With a programmable backlight and color-coded keys for easy operation, the PTT streamlines transport and weighing tasks.
Specifications:
Type | Pallet Truck Scale |
Capacity | 5000lb / 2000kg |
Readability | 1lb / 0.5kg |
Repeatability | 1000g |
Linearity | 1000g |
Pan Size | 47.2" x6.3" / 1200x160mm |
Weighing Units | ct, dr, g, kg, lb, mm, oz, T, tonne |
Interface | RS-232 |
Calibration | External calibration |
Display | Backlit LCD with 1.3" / 34mm high digits |
Power Supply | 12VDC 3A adapter / Internal rechargeable battery |
Operating Temperature | -10° to 40°C / 14° to 104°F |
Construction | Mild steel base/ABS plastic |
Overall dims | 550x525x175mm |
Part Number | PTT 5000a |
Features:
• Built-in printer can print weight, QR codes, bar codes and customized labels in numerous languages
• Vivid, backlit LCD easily visible in any lighting conditions
• Programmable backlight can be set to "always on," "always off" or "light only when weighing"
• RS-232 interface provides speedy connection to computers and printers
• Rugged construction stands up to industrial use
• Sealed keypad protects against dirt and spills
• Colour-coded keys facilitate quick recognition of the most frequently used buttons
• Checkweighing with audible alarm
• Zero-tracking feature ensures display returns to zero reading
• The auto power-off feature conserves battery life
• Multilingual display allows use in many different countries
• Solid non-marring polyurethane wheels
• Parts counting optimisation automatically refines piece weight as parts are added
• Rechargeable battery included for operation almost anywhere AC adapter included
Wheels swivel, allowing easy movement
