Product Information
Specification
| Model : | Input, Output Rating, Input Fuses, Output Fuses |
| Camera : | Heater |
| VG4-A-PSU0 : | 24 VAC, 50/60 Hz, 24 V @ 96 VA, 5.0 A, 2.0 A, 3.15 A |
| VG4-A-PSU1 : | 120 VAC, 50/60 Hz, 24 V @ 96 VA, 1.6 A, 2.0 A, 3.15 A |
| VG4-A-PSU2 : | 230 VAC, 50/60 Hz, 24 V @ 96 VA, 0.8 A, 2.0 A, 3.15 A |
| Certifications: | UL, CE, Plenum Rated |
| Dimensions (W x H x D),all models2 : | 170.0 x 216.4 x 105.0 mm (6.69 x 8.52 x 4.13 in.) |
| Construction Material: | Cast Aluminum |
| Standard Color: | White (RAL9003) |
| Standard Finish: | Powder coated, sand finish |
| Operating Temperature: | –60°C to 55°C (–76°F to 131°F) |
| Humidity: | 0% to 100%, condensing |
| Environmental Protection: | IP66, IK 8 (IEC 62262) |
| Product Number: | VG4-A-PSU1 |

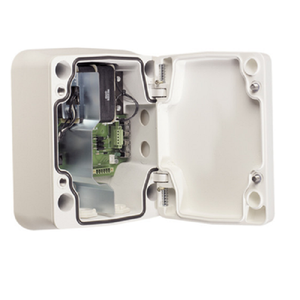

PSU 120VAC for Autodome MIC7000 IK08 Impact Rating BOSCH VG4-A-PSU1
Description:
• The AUTODOME Series cameras represent the latest advancements in video surveillance technology. The cameras ship fully assembled in a pendant or an in-ceiling housing. Bosch offers a host of mounts, power supply boxes, and accessories so you can tailor your installation for a variety of applications and environments. These items are sold separately so you purchase only the items you need, which saves money and simplifies purchases.
Features:
• 24 VAC, 120 VAC, and 230 VAC power supply boxes
• Pendant Wall, Corner, Mast, Roof, and Pipe mounts
• In-ceiling support kits for suspended ceilings and for IP54 certification
• IP Fiber Optic Communication Units
• Rugged polycarbonate, IK10-rated nylon, and high-resolution acrylic replacement bubbles
