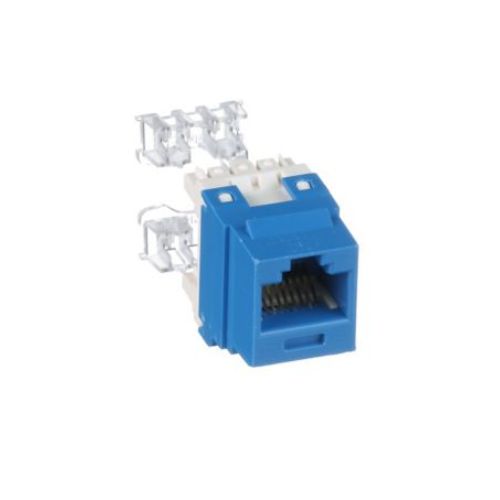

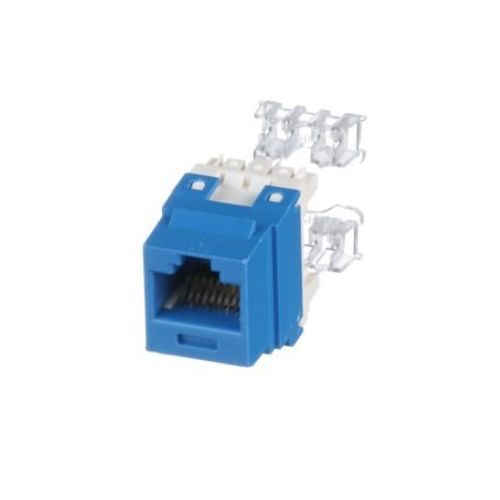

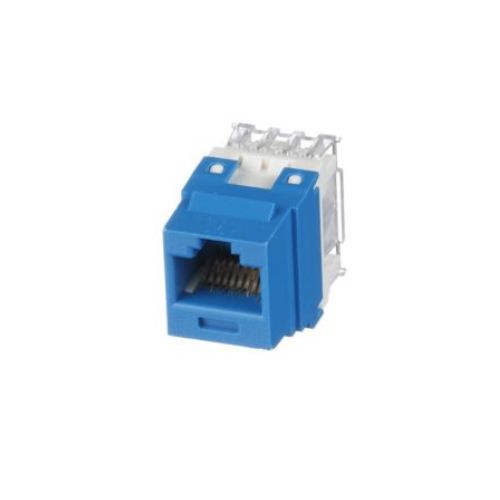

Polycarbonate Punchdown Keystone Unshielded Jack Module Blue NK688MBU
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
• The Polycarbonate Punchdown Keystone Unshielded Jack Module is crafted for terminating unshielded twisted pair (UTP) cables. Constructed from durable polycarbonate material, it offers robust performance and reliability. Designed for ease of use, it features a punchdown termination style that ensures secure connections.
• This module is universally compatible with keystone faceplates, patch panels, and surface mount boxes, facilitating quick and efficient installations. It is an ideal choice for both commercial and residential network applications.
• The NetKey® Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cables. Each module is 100% factory tested to ensure it exceeds industry standard performance requirements.
• The contacts are plated with 50 microinches of gold for superior performance and durability. Jacks are individually serialized for quality control and are compatible with various keystone interfaces, including NetKey® faceplates, modular patch panels, and surface mount boxes. The module is blue.
Also Known As:
Polycarbonate Punchdown Keystone Jack, Unshielded Punchdown Keystone Jack Module, UTP Keystone Jack Module, Polycarbonate Keystone Jack Module, Punchdown Jack for UTP Cables, Unshielded Network Keystone Jack, Keystone Jack for Unshielded Cables.
Specification:
| Product Type | Jack Module |
| Color | Blue |
| Body Material | Polycarbonate |
| Connector Type | Jack Module - Standard |
| Termination Style | Punchdown |
| Depth | 1.16 In |
| Height | 0.9 In |
| Length | 1.16 In |
| Width | 0.65 In |
| Standards Met | Exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at Swept Frequencies up to 250 MHz. Meets with ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant |
| Part No. | NK688MBU |
Features:
• 100% Performance Tested Ensures each module meets or exceeds industry standard performance requirements.
• 110 Style Punchdown Termination Uses a reliable punchdown termination style for secure connections.
• Universal Compatibility Snap-in design allows the module to fit into all faceplates, modular patch panels, and surface mount boxes for quick and easy installation.
• Quality Control Marking Each jack is individually serialized and marked with a quality control number for traceability.
• High-Volume Efficiency Reduces on-site waste and eliminates the need to open individual packages, making it ideal for high-volume installations.
