PANDUIT SURFACE RACEWAY, LD10 LOW VOLTAGE SINGLE CHANNEL, 8 FT, WHITE - LD10WH8-A
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Low Voltage Channel |
| Color | Color |
| Fitting Type | Channel |
| For Use With | LD Raceway |
| Material | Rigid PVC |
| Mount Method | Adhesive |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL Compliant. |
| Internal Area (in²) | 1 |
| Overall Height (In.) | 0.94 |
| Overall Length (In.) | 96 |
| Overall Width (In.) | 1.51 |
| Part Number | LD10WH8-A |
Panduit Surface Raceway, LD10 Low Voltage Single Channel, 8 ft, White - LD10WH8-A
Description:

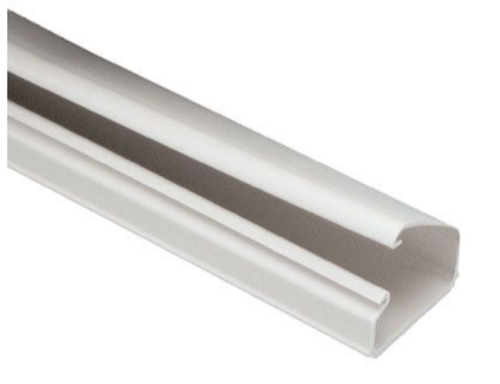

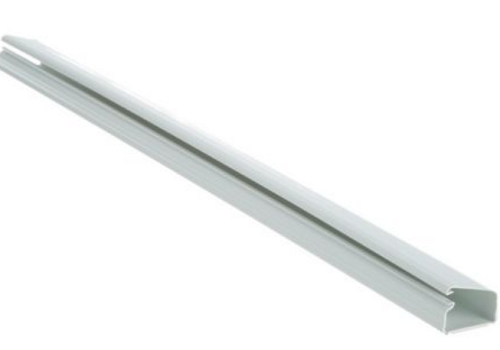

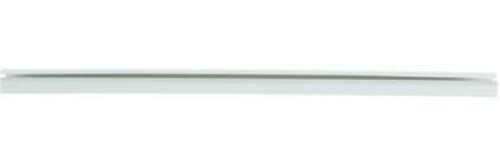

The LD10 Surface Raceway channel is a one-piece latching channel with integrated cover and is designed to route, protect, and conceal data, voice, and video cabling. It features a factory-applied adhesive backing for fast mounting. It is 8 feet in length and is 1.5 inches wide by 0.94 inches deep. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is constructed of rigid PVC and is White.
Key Features:
- One-piece latching surface raceway.
- 1.51 x 0.94 (38.4mm x 24.0mm).
- One-piece hinged design allows cables to be laid in.
- Factory applied adhesive backing speeds installation.
- Terminates using surface mount outlet box solutions or Panduit Mini-Com Surface Mount Boxes.
Application:
LD Surface Raceways are designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings. This raceway is a perfect solution for schools, hospitals, offices, homes
