Product Information

Specification

Disconnect Type	Female Disconnect
Insulation Material	Nylon
Insulation Type	Fully Insulated
Maximum Copper Conductor Size (AWG)	18
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.250 x 0.032
Standards Met	UL 310, CSA 22.2 No.153
Maximum Voltage (V)	600
Base Material	Brass
Finish/Coating	Finish/Coating
Color Code	Red
Barrel Type	Funnel
Flammability Rating	UL94-HB
Sub Brand	Pan-Term
Overall Height (mm)	5.6
Overall Length (In.)	0.84
Overall Width (In.)	0.35
Tongue Angle	Straight
Packaging Type	Bottle
Product Type	Disconnect
For Use With	CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)
Maximum Voltage (kV)	0.6
Part No.	DNF18-250FIB-C

Pan-Term Disconnect, Red, Nylon Tab 18-22 AWG, 0.250 x 0.032" DNF18-250FIB-C

Description:

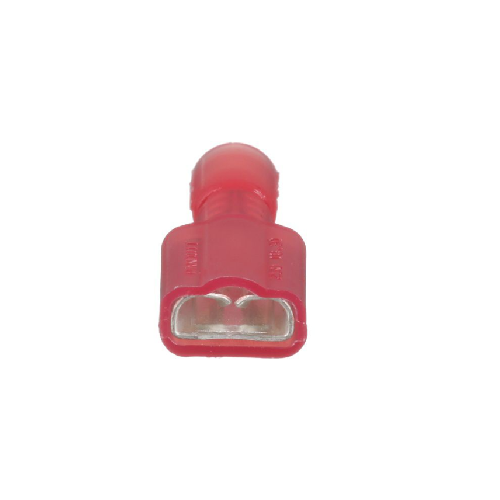

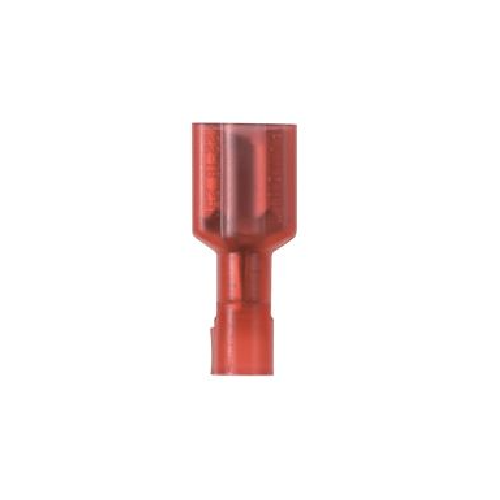

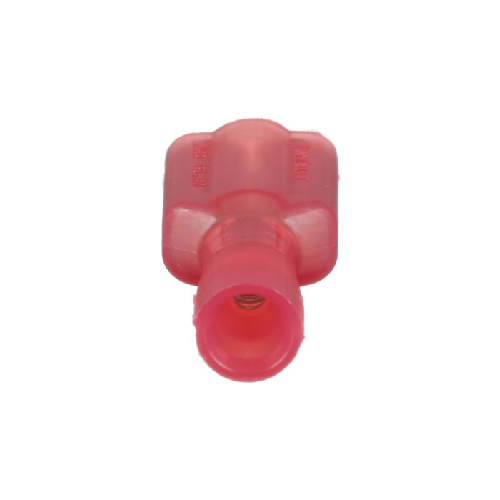

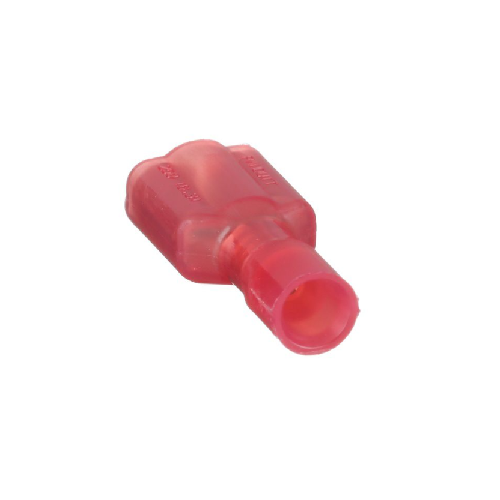

Panduit DNF18-250FIB-C Female Disconnect

Features

• Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
• Fully insulated design provides protection from electrical shorts
• Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
• UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C)
• UL and CSA rated up to 600 V per UL 310
