Pan-Lug™ SBC2-C Mech Con-Split Bolt PANDUIT SBC2-C (Pack of 100)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Mechanical Connectors - Split Bolt |
| Connection Type | Copper to Copper |
| Base Material | Copper |
| Minimum Copper Conductor Size (AWG SOL) | 6 |
| Maximum Copper Conductor Size (AWG STR) | 2 |
| Standards Met | UL listed to 467 and 486 and CSA certified for use up to 600V & Temperature Rated to 90°C |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (V) | 600 |
| Overall Height (In.) | 1.23 |
| Overall Height (mm) | 31.24 |
| Sub Brand | Pan-Lug™ |
| Part Features | high strength copper for corrosion resistance, extra long body, range taking, true hex design for correct fit |

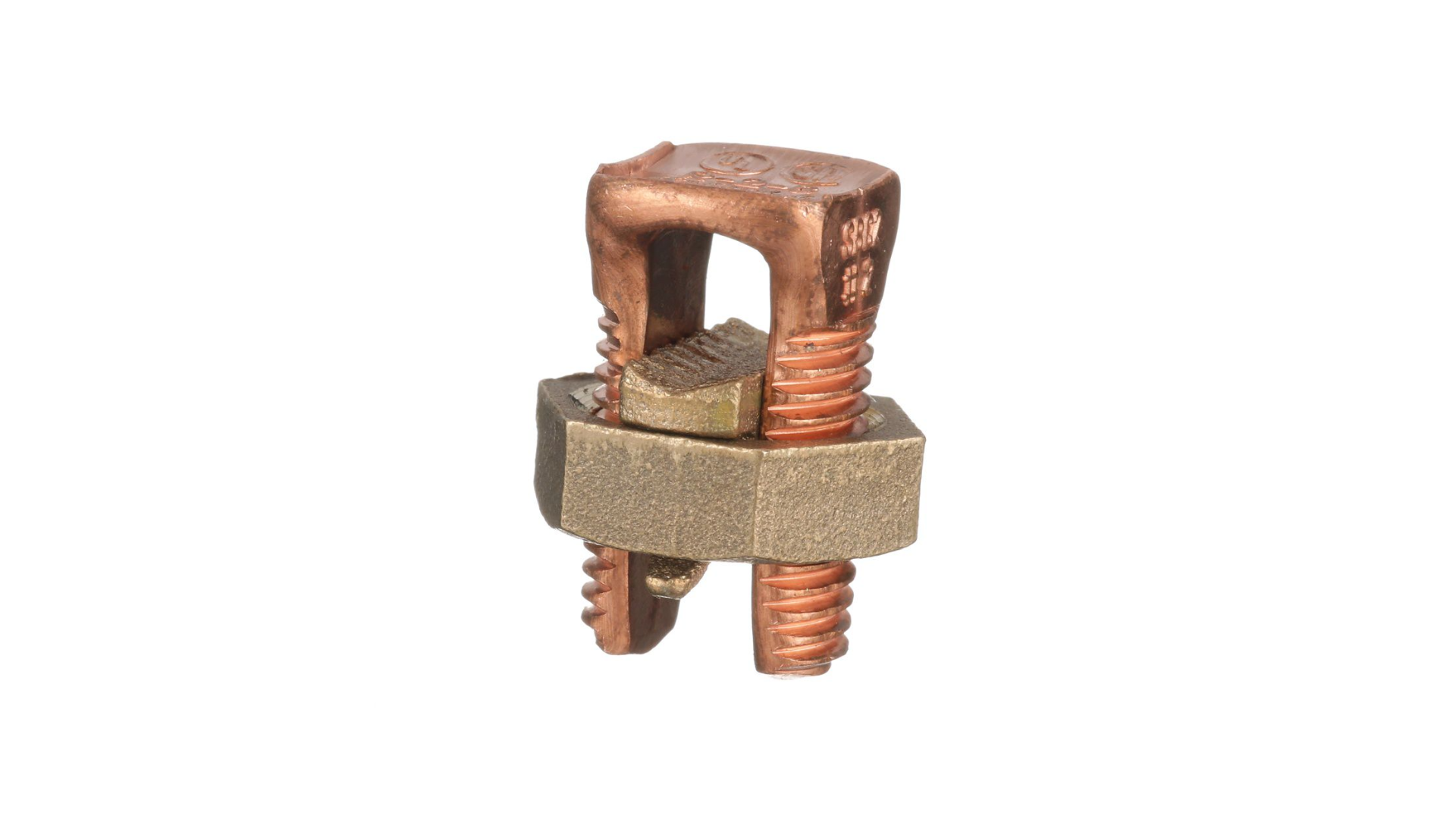

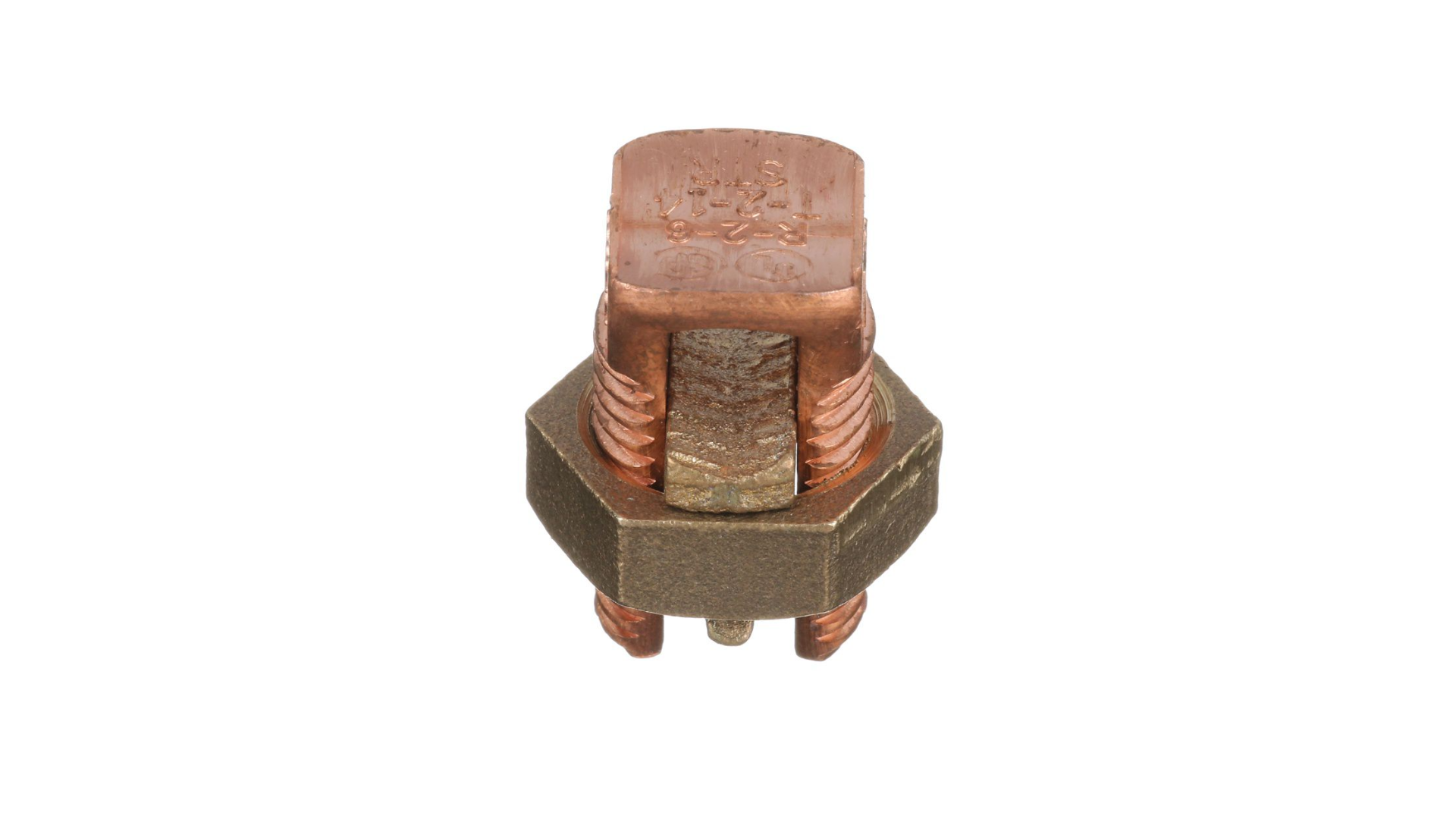

Pan-Lug™ SBC2-C Mech Con-Split Bolt PANDUIT SBC2-C
Description:
The SBC2-C Mechanical Lug Split Bolt Copper is made from high strength copper alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The internal pressure bar provides a secure connection on a full range of conductor combinations used with each Lug assuring premium wire pull-out strength.
Download PDF Spec Sheet
