Outdoor Distribution Series Laser Ultra Fox 12 Fiber PVC Singlemode 900µm Tight Buffer Steel Armor Black Cable DX012DSLX9KAA2
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Tensile Load | Menimum Bend Radius | |||||||
| Diameter | Weight | Installation | Operational | Installation | Long Term | |||
| Fiber Count | Fiber Type | Part Number | mm/(in) | kg/km (lbs/1,000) | N (lbs) | N (lbs) | cm (in) | cm (in) |
| 12 | SLX - SM ITU-T G.652.D | DX012DSLX9KAA2 | 14.0 (0.55) |
160.0 (113.40) |
2,700 (600) |
900 (200) |
21.0 (8.3) |
14.0 (5.5) |
DESCRIPTION:

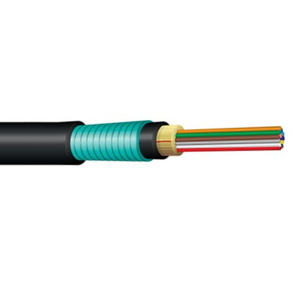

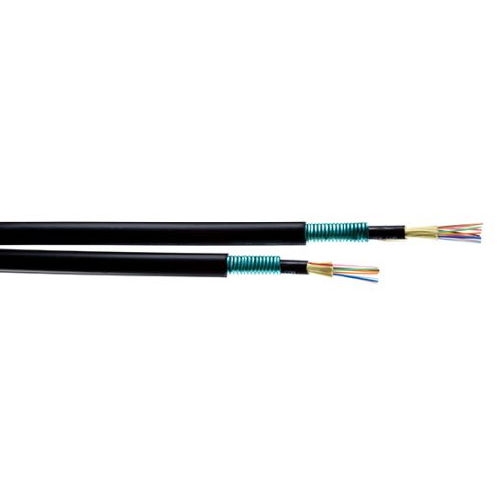

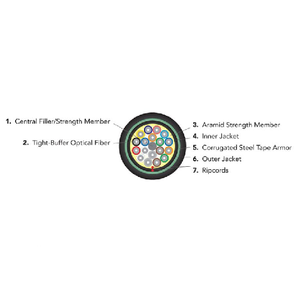

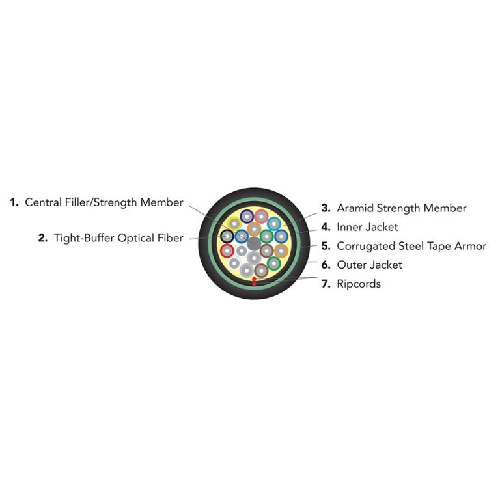

DX-Series Distribution Cable series with corrugated steel tape (CST) armoring. Ideal for installation where direct burial or rodent protection is required. The steel-armor is easily removed with an internal ripcord, leaving a fully functional intact DX-Series Distribution riser-rated inner cable with original cable marking for identification.
APPLICATIONS:
• Ideal for use in point-to-point runs in between buildings
• Ideal for installation where direct burial or rodent protection is required
• Inner tight-buffered cable is suitable for direct field termination with standard optical connectors
• Ideal for installations requiring an extremely rugged and reliable cable design where maximum mechanical and environmental protection are necessary
STANDARDS:
OCC CST armored tight-buffered fiber optic cables meet the functional requirements of the following standards:
• ICEA-S-104-696
• TIA-568
• TIA-598
CHARACTERISTICS:
| Characteristic | CST Armored Cables (Using Distribution Series Riser Inner-Cable) |
| Operating Temp | -40°C to +85°C |
| Storage Temp | -55°C to +85°C |
| Install Temp | -10°C to +60°C |
| Crush Resist | 440 N/cm (EIA-TIA-455-25A) |
| Impact Resist | 20 impacts (EIA-TIA-455-25A) |
| Flex Resist | 25 cycles |
| Jacket Type | D Inner, A Outer |
FEATURES:
• High-performance components and construction
• Inner cable materials are Indoor/Outdoor: UV, water and fungus resistant
• Polyethylene (A) outer jacket is UV, water and fungus resistant: ideal for outdoor installations
• Wide operating temperature range of -40°C to + 85°C
• High-performance 900µm tight-buffered coating on each optical fiber for environmental and mechanical protection 2 to 144 fibers
• 900µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber
