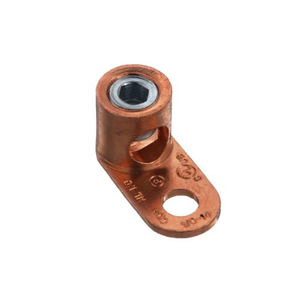

One Hole Mechanical Copper Cable Lug ML1/0-LY (Pack of 50)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Mechanical Connectors - Lug |
| Color | White |
| Base Material | Copper |
| Minimum Copper Conductor Size (AWG SOL) | 14 |
| Stud Hole Size (In.) | 5/16 |
| Number of Holes | 1 |
| Tongue Type | Straight Tongue |
| Tongue Angle | Straight |
| Tongue Length (In.) | 0.8 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Width (In.) | 0.73 |
| Overall Height (In.) | 0.79 |
| Overall Length (In.) | 1.57 |
| Overall Width (In.) | 0.73 |
| Barrel Type | Single Barrel |
| Hex Size (In.) | 1/4 |
| Maximum Voltage (V) | 600 |
| Part Number | ML1/0-LY |

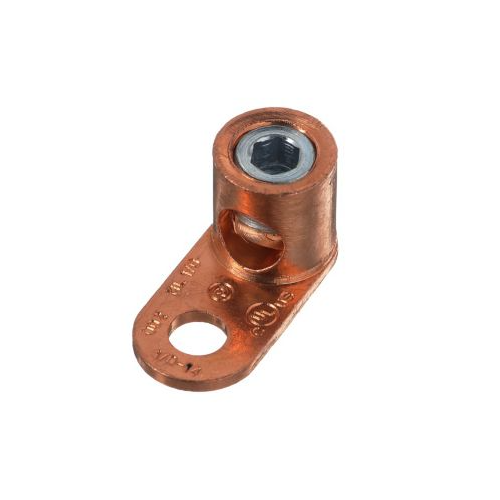

One Hole Mechanical Copper Cable Lug ML1/0-LY (Pack of 50)
Description:
The ML1/0-LY Mechanical Cable Lug one-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel set screw provides a durable electrical contract between conductor and Lug. The internal pressure bar and V-bottom collar provide uniform clamping force to assure positive contact.
