Multi Tap Mechanical Lug PCSB2/0-4-6 (Pack of 6)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Multi-Tap Mechanical Connectors |
| Base Material | Aluminum |
| Minimum Aluminum Conductor Size (AWG) | 14 |
| Minimum Copper Conductor Size (AWG SOL) | 14 |
| Number of Ports | 4 |
| Finish/Coating | Tin-Plated |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (V) | 600 |
| Hex Size (In.) | 3/16 |
| Wire Strip Length (In.) | 0.56 |
| Overall Height (In.) | 1.38 |
| Overall Length (In.) | 2.86 |
| Overall Width (In.) | 1.56 |
| Insulation Material | Clear PVC |
| Part Number | PCSB2/0-4-6 |

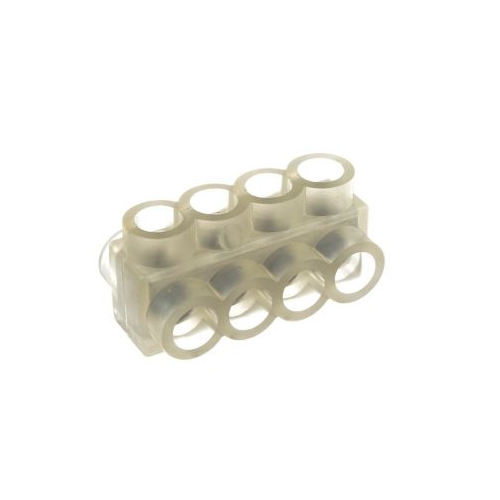

Multi Tap Mechanical Lug PCSB2/0-4-6
Description:
The PCSB2/0-4-6 Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.
