MRBF Terminal Fuse Block

Product Information

Specification

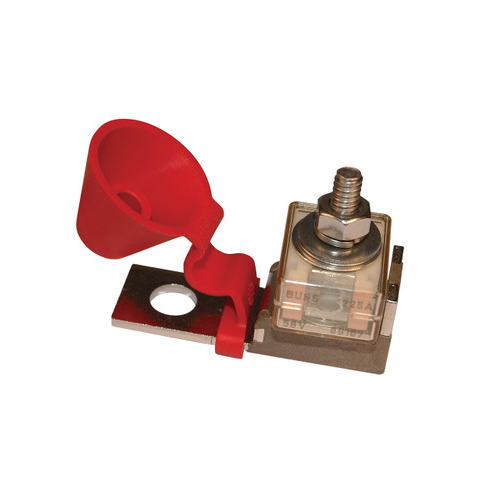

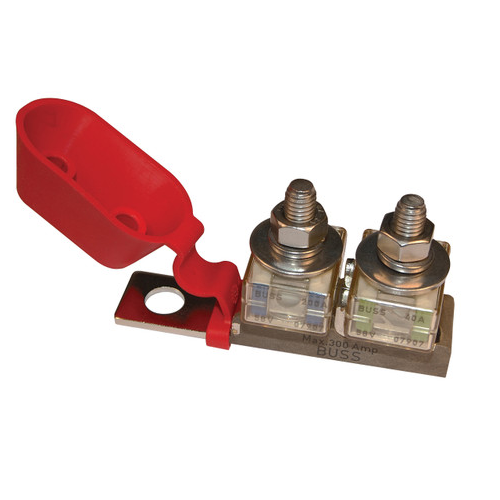

MRBF Terminal Fuse Block

Also Known As:

Fuse Block, Terminal Fuse Block, Fuses and Fuse Blocks, Electrical Parts

About:

Carries a wide range of fuses and fuse blocks in order to offer the most solutions possible. Our MRBF fuse block is literally made for marine usage. MRBF stands for Marine Rated Battery Fuse. This type of fuse is designed to protect the main circuit on large battery banks. They are easy to install and even easier to inspect, maintain, and check. This fuse block provides high current protection in tight spaces making it ideal for use on your boat.

Construction:

• New isolated stud design uses standard M8 (5/16") hardware and permits stacking of terminals
• Compact, high-amp fuse-Appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
• Provides high current protection in tight space constraints
• Insulating cap prevents accidental shorts

Features:

• Maximum Amperage: 300 Amps
• Maximum Voltage: 58V DC
• Recommended Torque: 75 in-lb (8.47 Nm)
• Terminal Stud: M8 (5/16")

Specifications:

• Max Amperage : 300 Amps
• Max Voltage : 58V DC
• Part No : EFB-MRBF
