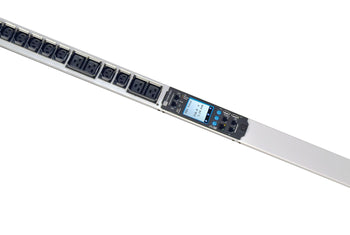

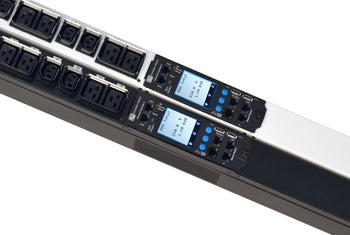

Monitored eConnect PDU CPI EA-3002-E

Product Information

Specification

Plug	NEMA L5-30P
Outlets	(24) 5-20 Standard Outlets
Volts	120V
Phase	Single-Phase
AMP	30A
kW Capacity	2.9kW
Cabinet Compatibility	42U & Higher
Finish/ Color	Glacier White

DESCRIPTION:

Monitored eConnect PDU; White; Vertical; For 42U & Higher Cabinets; L5-30 Input; (24) 5-20 Outlets; 2.9kW; 149°F (65°C); Secure Array IP Consolidation; Field-Replaceable Controller; +/-1% Metering Accuracy; LCD Display; 10/100/1000MB Port; Onboard GUI; SNMPv1/v2/v3; RESTful API, CLI; LDAP & Radius Integration; HTTPs; Environmental Sensor and Electronic Lock Integration Ready; 100% Rated Hydraulic Magnetic Breakers; Tool-less Mounting

Additional Features:

• Input and branch circuit monitoring with billing-grade +/-1% accuracy
• Field-replaceable controller module for easy serviceability and upgradeability while
maintaining power to critical loads; SD-card transfers PDU configuration
• Onboard GUI, RESTful API, SNMP v1/v2/v3, Command Line Interface (CLI), and native
Power IQ® DCIM software integration allows users to easily manage PDUs
• Zero Touch Provisioning (ZTP) automates configuration and provisioning of large
deployments of PDUs.
• HTTPS support, RADIUS and LDAP integration for enhanced authentication
and security
• Customization capabilities: outlet configurations, color options, power cord length,
input connection types and more
