MIC Unitized Tight-Buffered Interlocking Armored Cable Plenum 48 F 50 µm multimode (OM4) CORNING-C 048T88-61190-A3
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
| Product Number: | 048T88-61190-A3 |
| EAN Code : | 4056418174662 |
| Environment : | Indoor |
| Cable Type : | Tight-Buffered |
| Product Type : | Interlocking Armor |
| Fiber Category : | 50 µm MM (OM4) |
| Flame Rating : | Plenum (OFCP) |
| Application : | General Purpose Horizontal, Plenum |
| RoHS : | Free of hazardous substances according to RoHS 2011/65/EU |
| Temperature Range : | 0 °C to 60 °C (32 F to 140 F ) |
| Fiber Count : | 48 |
| Outer Jacket Color : | Aqua |
| Outer Jacket Material : | Flame-retardant |
| Fiber Code : | T |
| Fiber Type : | Multimode |
| Wavelengths : | 850 nm / 1300 nm |
| Weight : | 496.9 kg/km (333.9 lb/1000 ft) |
MIC Unitized Tight-Buffered Interlocking Armored Cable Plenum 48 F 50 µm multimode (OM4) CORNING-C 048T88-61190-A3
Description:

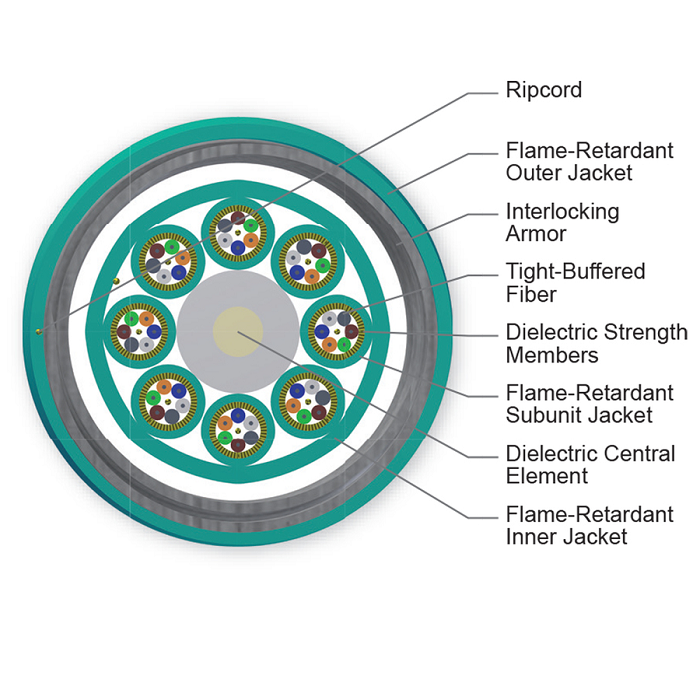

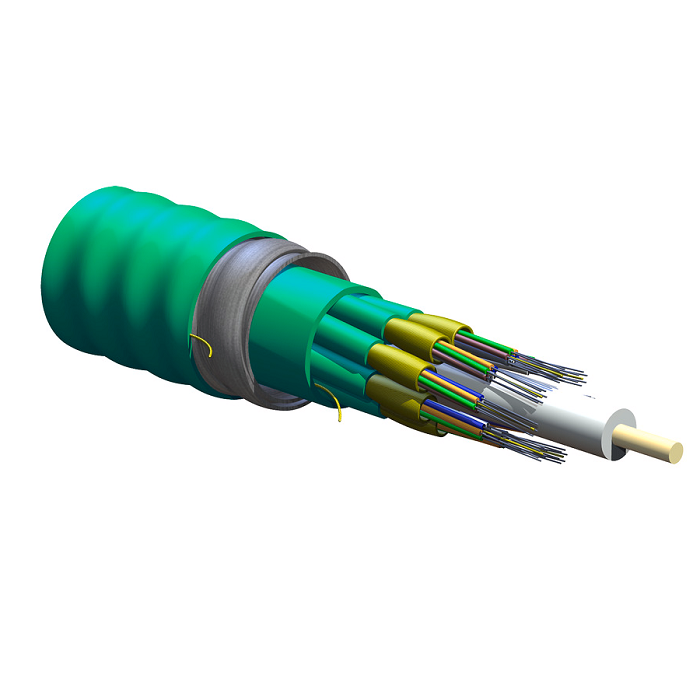

• Corning MIC unitized interlocking armored plenum cables are standard MIC unitized cables designed for use in plenum, riser, and general-purpose environments for intrabuilding backbone and horizontal installations. These multifiber cables use individually jacketed 900 μm buffered fibers enabling easy, consistent stripping and facilitating termination. The fibers are grouped into 6-, 12-, or 24-fiber jacketed subunits for quick and easy identification. These subunits surround a dielectric central member and are protected by a flexible, spirally wrapped, aluminum interlocking armor that offers easy, one-step installation and up to seven times the crush protection of unarmored cables. With a flame-retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical exposure conditions and applications requiring extra rugged cables for routing inside buildings, through riser shafts, to telecommunication rooms, and to workstations.
Feature/Benefits:
• 6-fiber jacketed subunits
Quick and easy identification
• Flexible, interlocking armor design
Seven times crush protection compared to non-armored cables
• TBII buffered fibers
Easy, consistent stripping
• Flame-retardant jacket
Rugged and durable
