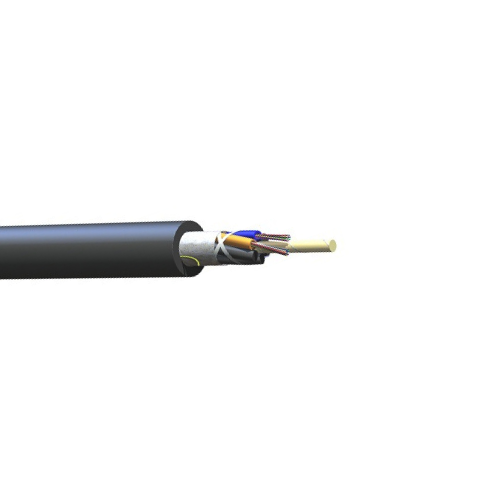

Loose Tube Gel-Free Cable 24 F Single-mode FREEDM CORNING 024EUF-T4101D20

Product Information

Specification

Type	Dielectric
Cable Type	Loose Tube
Fiber Category	Single-mode (OS2)
Flame Rating	Riser (OFNR)
Fiber Count	24
Buffer Tube Color Coding	Blue, Orange
Number of Ripcords	2
Outer Jacket Color	Black
Outer Jacket Material	Flame-Retardant
Buffer Tube Color	Blue, Orange
Tape	Water-swellable
Fiber Coloring	Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube	12
Weight	98.11 lb/1000 ft
Part Number	024EUF-T4101D20

Loose Tube Gel-Free Cable 24 F Single-mode FREEDM CORNING 024EUF-T4101D20

Description

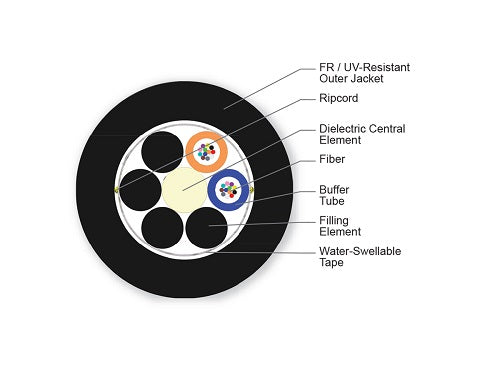

Corning FREEDM loose tube gel-free riser cables are flame-retardant, indoor/outdoor, riser-rated cables designed for interbuilding and intrabuilding backbones in aerial, duct, and riser applications. These cables are protected against water penetration by innovative water-blocking materials that swell to absorb water. Water blocking without the use of messy gels provides more efficient and craft-friendly cable preparation. It also makes cable access easier and simplifies the use of buffer tube fan-out kits. The buffer tubes and fibers in each tube are color coded for quick, easy identification. The SZ stranded, loose tube design isolates fibers from installation and environmental rigors and allows for easy mid-span access. The cable design is also National Electrical Code® (NEC) listed (OFNR and FT-4). The all-dielectric cable construction requires no grounding or bonding, and the UV-resistant, flame-retardant jacket is rugged, durable, and easy to strip. Note: This cable is available in 12 different jacket colors – blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua. The colored jacket allows for easy visual identification of the cables while still providing all of the required environmental protection of an indoor/outdoor cable jacket. Black is the standard jacket color using the part numbers shown here.

Features

• Gel-free water-blocking technology Craft-friendly cable preparation.

• Loose tube design Stable performance and compatibility with all common fiber types.

• Color-coded tubes and fibers Quick and easy identification.

• All-dielectric construction Requires no grounding or bonding.

• Common installations Outdoor lashed aerial and duct; indoor vertical riser and general-purpose horizontal according to National Electrical Code (NEC) Article 770.
