Lo-Riser IPT4-816 Trailer Ground Level Loading to Travel Height - IPT4-816
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Overall Width | 102” |
| Overall Length | 265” |
| Usable Deck Width | 74” |
| Usable Deck Length | 192” |
| Load Angle | 4° |
| Deck Height Typical | 18.25” |
| Part Number | IPT4-816 |
Lo-Riser IPT4-816 Trailer Ground Level Loading to Travel Height - IPT4-816
Description :-:

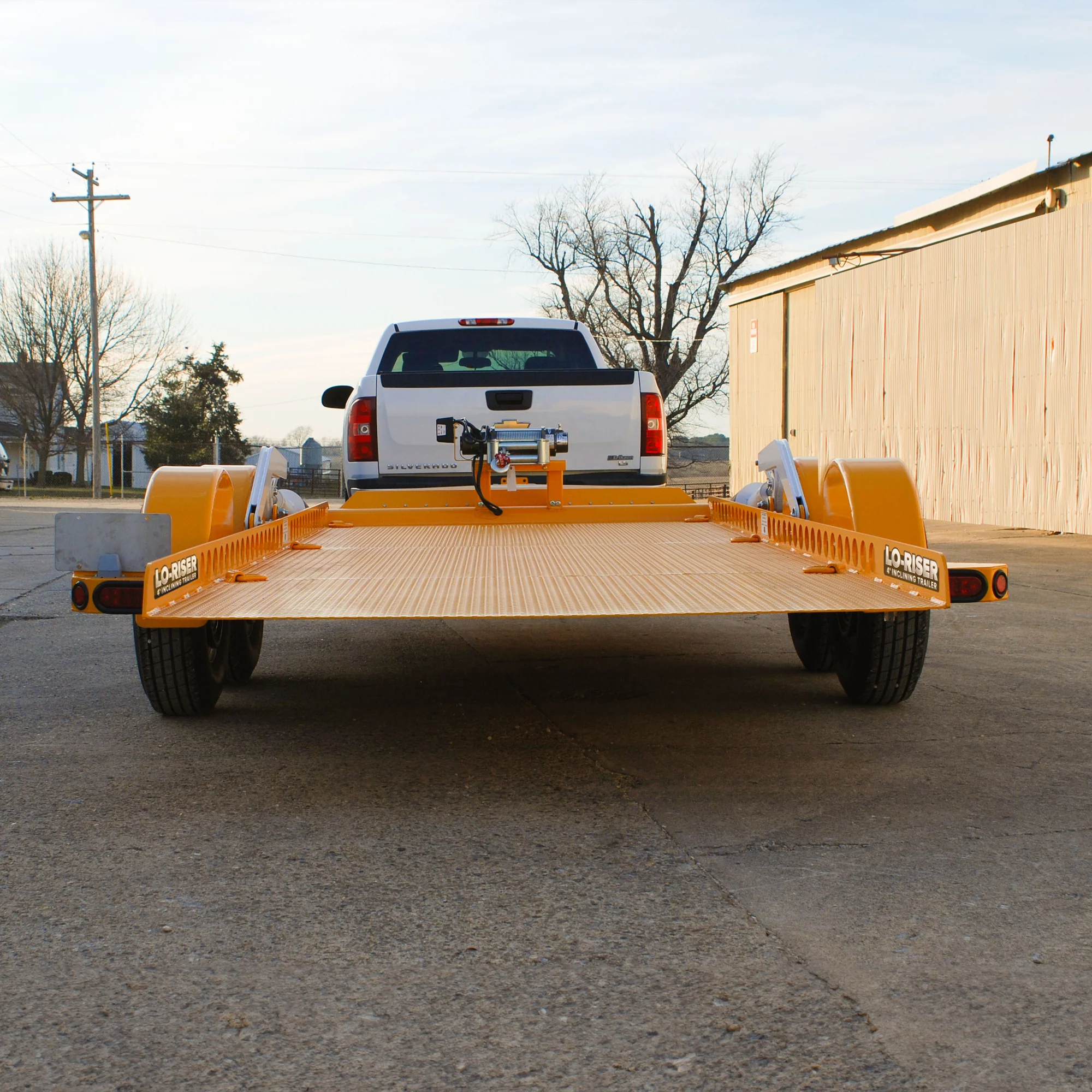

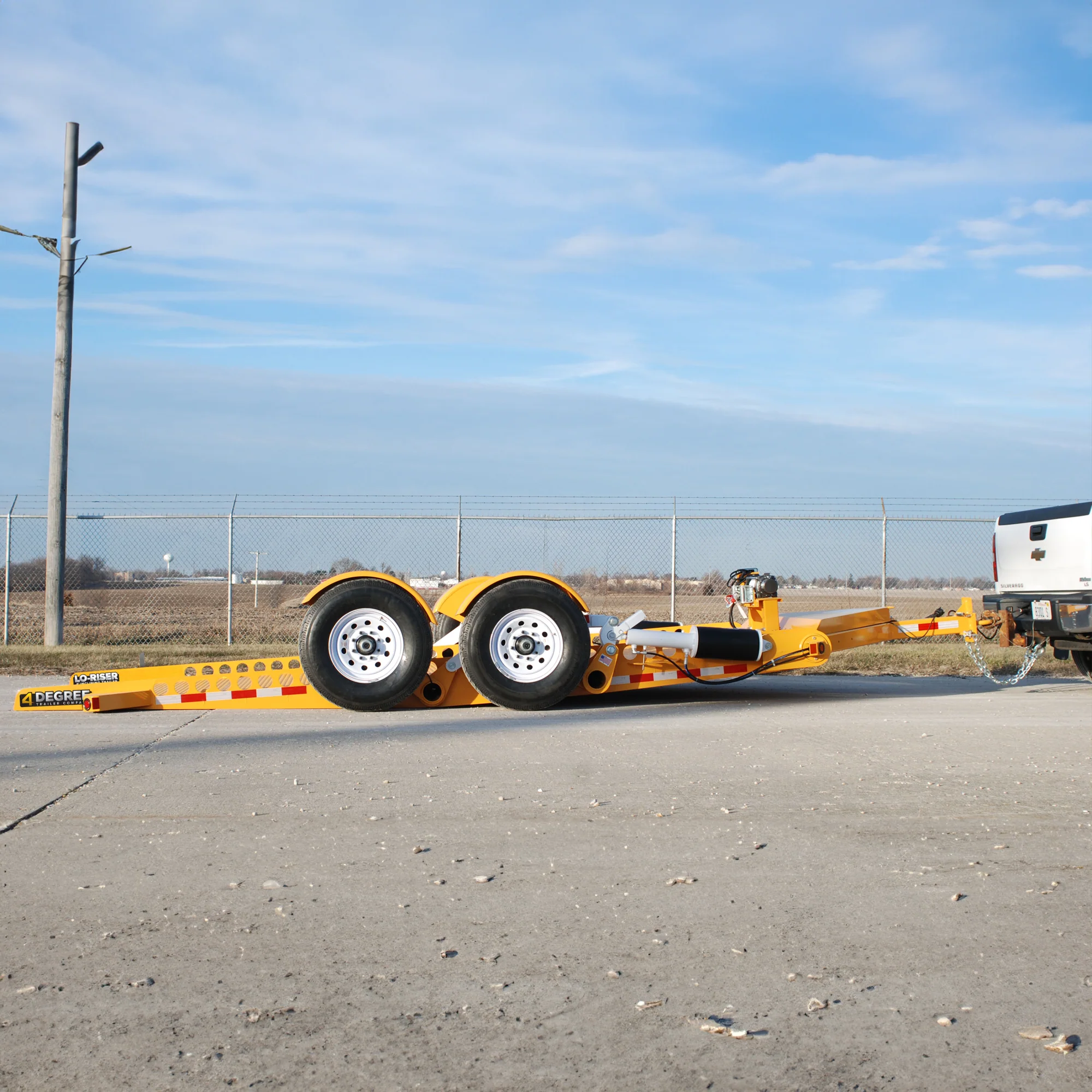

Lo-Riser IPT4-816 Trailer shown below at travel height. A mere 3/16” lip allows any rolling load to be easily pushed on or off the trailer deck. Nearly ½ of the trailer’s framework rests on the ground for loading, supporting the weight of the payload and the additional weight of the forklift used for loading.
Key Features :-:
- ☸ 4° Load Angle – No Ramps or Crowns
- ☸ Rubber over Hydraulic Suspension
- ☸ Safe, Simple, Swift, & Secure Loading /Unloading
Loads & Weights:
-
☆ Payload Capacity ................... 16,000 lbs
☆ GVWR .................................... 19,790 lbs
☆ Trailer Weight ........................... 3,790 lbs
☆ Load per axle ........................... 8,000 lbs
☆ Total Two-Axle Load............... 16,000 lbs
☆ Pintle Hitch (standard) Load..... 3,790 lbs
Download PDF Spec Sheet
