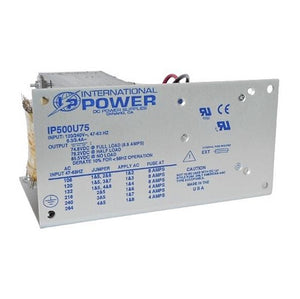

Linear Unregulated Power Supplies 75V-6.6A Output Volts/Amps IP500U75
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
The Series unregulated power supply line is designed for high current applications at low cost when full regulation is not required. This rugged, highly reliable power supply line is ideal for applications such as powering solenoids, relays, DC motors, lamps and DC-DC converters. Standard DC outputs are listed below, other outputs from 9 to 175 volts are available on special order.
Specification:
| Product Category | Linear Power Supplies |
| Load Regulation | Not Regulated |
| Output Power | 495 W |
| Input Voltage | 108 VAC, 120 VAC, 132 VAC, 216 |
| Number of Outputs | 1 Output |
| Load Regulation | 9% For A 50% To 100% Load Change |
| Storage | -40ᵒC To + 95ᵒC |
| Output Voltage-Channel 1 | 75 VDC |
| Output Current-Channel 1 | 6.6 A |
| Length | 228.6 mm |
| Width | 142.75 mm |
| Height | 117.35 mm |
| Input Frequency | 47 Hz to 63 Hz |
| Part Number | IP500U75 |
Features:
• Bobbin Wound Transformer
• Computer Grade Capacitors
• Floating Output
• Full Rated to 55 degrees Celsius
• Open Frame Construction
• Secondary Fuse Protection
• 50 Amp, 200 Volt full Bridge Rectifier
• AC Input 47-63 Hz
• 108/120/132/216/240/264 VAC Selection
• Output Ripple: 3% RMS at full rated load, 4% on 12 Volt model IP500U12
• Efficiency Full Load 80% typical
• UL Recognized for USA and Canada File Number E133338
• Complies with the requirements of standard EN 60950 and low voltage directive 72/23/EEC
