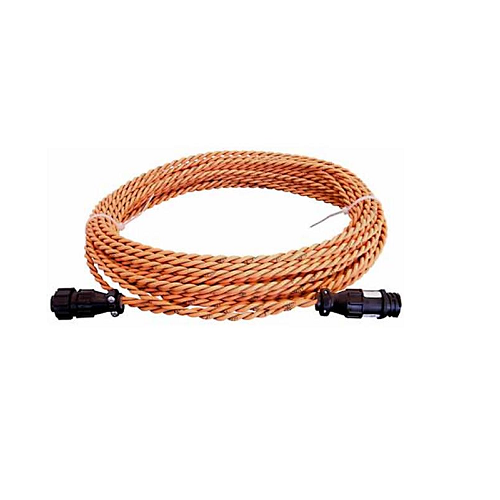

Leak Detection Sensor Rope 60109-004

Product Information

Specification

Description:

The Sensor Rope detects the presence of water. The Sensor Rope is constructed of a strong, durable, non-conductive polymer to reduce false alarms, while remaining highly flexible for easy placement around equipment. Sensor Ropes attach to the RIM1000 through the Leak Detection Controller Kit. Sensor Ropes are available in three lengths. Connect Sensor Ropes end-to-end to extend length.

Features:

• Plenum Rating: CL2P (UL)

• Sheer Strength: >180 lb (>81.65 kg)

• Cut Through Resistance: >40 lb (>18.14 kg) with .005” (0.127 mm) blade

• Abrasion Resistance: 60 cycles per UL 719

• Operating Temperature: 32°F to 167°F (0°C to 75°C)

• Operating Humidity: 5% to 95% RH, non-condensing

• Maximum Altitude: 15,000 ft (4,572m)

• Storage Temperature: -22°F to 185°F (-30°C to 85°C)

• Size: Rope not >0.25” (6.35 mm) diameter

• Connector: 4 pin, 0.96” (24.38 mm) diameter

• Material: Composite polymer

• Color: Orange/Black

• Certifications: CE; UL CL2P; RoHS Compliant; Plenum Rated
