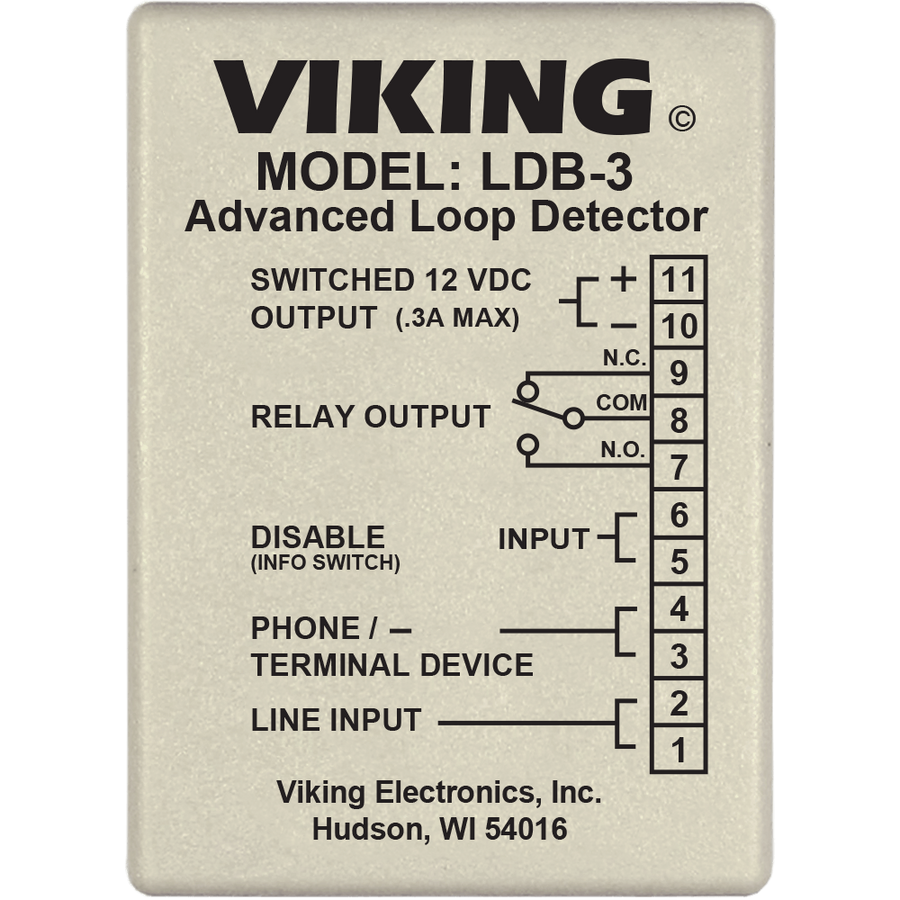

LDB-3 Viking Advanced Loop and/or Ring Detector

Product Information

Specification

Description:

The LDB-3 Advanced Loop Detector monitors an analog phone line for ringing and/or an off hook condition A built-in relay can be activated when either of these conditions are detected This is ideal for monitoring line status or for providing a visual indication of such Viking Advanced Loop and/or Ring Detector LDB-3 Features & Specifications: Detects ring voltage and off hook loop current On/off switches for ring detection and offhook/loop detection Screw terminal connections Selectable ring cadence mode (relay can remain on between rings) Wall mountable with foam tape (included) or screws (not included) Switched 12V DC output (follows relay activation for powering strobe lights, cameras, etc.

Features and Benefits:

•Detects ring voltage and off hook loop current.

•On/off switches for ring detection and offhook/loop detection.

•Screw terminal connections.

•Selectable ring cadence mode (relay can remain on between rings).

•Wall mountable with foam tape (included) or screws (not included).

•Switched 12V DC output (follows relay activation for powering strobe lights, cameras, etc.).
