Product Information
Specification
| Function | MultiSensor for room monitoring |
| Integrated software | KentixONE via integrated web server (HTTPS) |
| Operating mode | Stand-alone device (single operation) Satellite Device (KentixONE network connection) |
| Sensor temperature | Measuring range -20 to 99°C |
| Sensor – Relative humidity | Measuring range 0 to 100% |
| Dew point | Calculated in °C |
| Sensor – motion detector | PIR sensor, trigger sensitivity adjustable Detection cone: approx. 110 Range: approx. 8m |
| Sensor – Vibration | 3-axis accelerometer with position detection (sensitivity adjustable), measuring range 0.25-5G |
| Signal generator | 85dB, 2.3kHz |
| LED | ALARM (red), RUN (green), LINK/ACT to LAN socket |
| Radio | BLE 2.4GHz ISM band, encryption AES 128 bit |
| SD card | Integrated Micro SD card holder as additional memory for image recording, up to 128 GB |
| Button | Reset button for factory reset on rear panel |

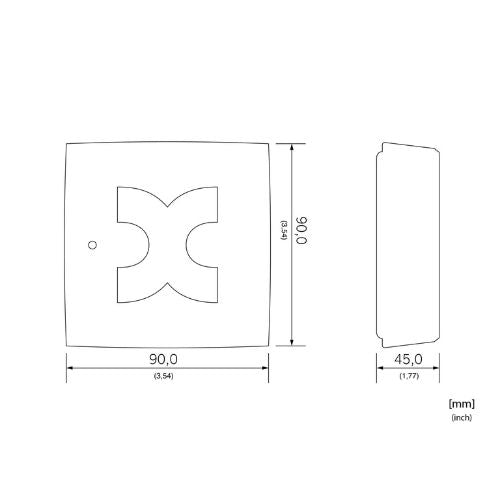

| Housing | Material: PS 90 x 90 x 45 mm Colors: White, Black |
| Environmental conditions | Temperature 0 – 50°C Humidity 5-95%, non-condensing |
| Part Number | KTX-KMS-LAN-B-BLE |
Kentix MultiSensor LAN BLE with PoE (Black) - KTX-KMS-LAN-B-BLE
Description:
The MultiSensor is designed for comprehensive room monitoring of up to 20 hazards and covers an area of approximately 20-25m². It connects via Ethernet with PoE (Class 1), eliminating the need for additional cabling. The sensor can function as a stand-alone device with integrated KentixONE software (HTTPS) or within a networked KentixONE system using an AlarmManager or SiteManager. It is typically mounted on the ceiling using the provided mounting bracket, but optional mounting in an IT rack is possible with a 19" bracket (accessory). Integrated sensors include temperature, humidity, dew point, carbon monoxide (CO), 360° PIR motion sensor, 3-axis G-sensor, and digital input/outputs. It is also ideal as an independent room sensor to enhance network monitoring systems (PRTG, Nagios, CheckMK, etc.) via SNMP-V2/3 or REST API, and can send alarm emails in stand-alone mode.
Key Features :-:
☸ Monitor room temperature for high/low values to protect against heat damage or overheating of equipment.
☸ Comprehensive monitoring of the office for movement, temperature and air quality to ensure safety and comfort.
☸ Constant monitoring of the server room for temperature, humidity and intruders to ensure the smooth operation of the IT infrastructure.
☸ Monitoring of climate conditions in storage rooms to ensure optimal storage conditions for sensitive goods.
☸ Monitoring of the air conditioning system ensures efficient performance and prevents malfunctions to optimize indoor climate and energy efficiency.
-
-
☸ Detection of movements in rooms to safeguard and prevent security risks and losses.
☸ Heating failure alarm prevents frost damage and protects sensitive equipment and devices.
☸ Monitoring temperature, humidity and dew-point for optimal indoor conditions.
☸ Early detection of fires caused by fire gases or increased temperature in the server room to protect sensitive IT infrastructure and data.
-
Download PDF Spec Sheet
