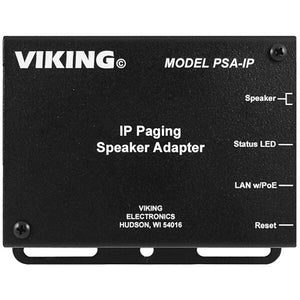

Viking PSA-IP – IP Paging Speaker Adapter
About :
The Viking PSA-IP Paging/ Speaker Adapter converts 8 ohm, 25V, or 70V analog speakers into SIP endpoint paging speakers. It supports one-way SIP or multicast paging. The compact design attaches to the speaker via magnets or mounting holes, with simple wire connections and a single CAT5/6 cable for PoE. The built-in 6-watt amplifier powers up to six 8-ohm speakers, delivering about 1 watt per speaker.
Also Known As :
VoIP Speaker Adapter, SIP Paging Speaker Converter, Speaker Converter, SIP Paging Speaker, Network Audio Paging Adapter
Specification :
|
Paging Unit Type |
Amplifier, Indoor, Intercom, Notification, Paging Adapter |
| Power | PoE class 3 (<13 Watts) |
| Operating Temperature | -40° F to 140° F (-40° C to 60° C) |
| Humidity | 5% to 95% non-condensing |
| SIP Audio Codecs | G711u, G722 and G711a |
| Network Compliance | IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with auto cross over |
| Maximum Output Level | 105 dB SPL @ 1M (driving one 8 Ohm speaker with sensitivity of 96dB / 1W / 1M S.P. Level) |
| Connections | (1) RJ45 10/100 Base-T, (4) Butt Connectors |
Core Features :
• SIP compliant
• PoE powered (class 3, <13 Watts)
• Paging prioritization
• Plays audio from standard multicast sources
• SIP endpoint or multicast group member
• Red call status LED indicator
• Compatible with Polycom multicast paging
• Built-in high efficiency 6 Watt class D amplifier
• Can drive up to six 8 ohm analog speakers for greater coverage
• SIP/Multicast: SIP page, SIP page and zoned multicast receive
• Support for access code to prevent unwanted SIP calls
• Hangs up on: busy signal, time-out, or touch tone command
• Network remote speaker volume control
• Mounting: Magnetically attach to speaker magnet or fasten to the 25/70V transformer mounting holes on speaker frame
• Chassis protects circuitry against plenum dust
• Diagnostics for testing speaker
• Programmable pre-page alert tone
Download PDF Spec Sheet
