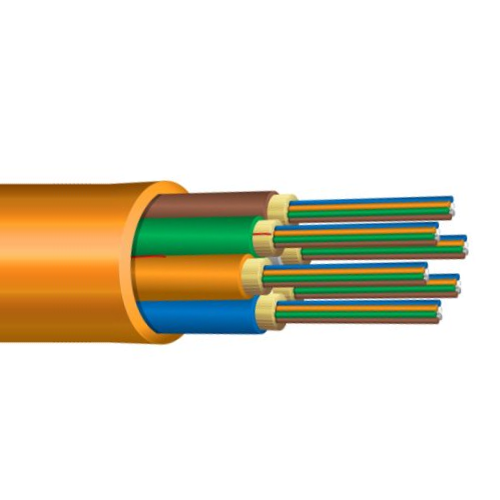

Indoor/Outdoor Subgrouping Series Ultra Fox 72 Fiber Fluoropolymer Multimode 900µm Tight Buffer Orange Plenum Cable GX072KWLS9OP
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Tensile Load | Menimum Bend Radius | |||||||
| Diameter | Weight | Installation | Operational | Installation | Long Term | |||
| Fiber Count | Fiber Type | Part Number | mm/(in) | kg/km (lbs/1,000) | N (lbs) | N (lbs) | cm (in) | cm (in) |
| 72 | WLS - 62.5µm OM1 | GX072KWLS9OP | 18.4 (0.72) |
317.0 (223.65) |
11,300 (2,540) |
3,750 (840) |
27.6 (10.9) |
27.6 (10.9) |
DESCRIPTION:
• Used in trunking, LAN and distribution applications where versatile installation capability is required for ducts, plenums, and air-handling spaces
• Design allows subcables to be routed to multiple locations such as wiring racks and closets
• Suitable for both indoor plenum and outdoor installation – no need to splice outdoor cable to indoor cable at the building entrance
• 900μm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices, because connectors terminate directly to the fiber
• No need to splice outdoor cable to indoor cable at building entrance
• High crush resistance may eliminate the need for innerduct
APPLICATIONS:
• Used in trunking, LAN and distribution applications where versatile installation capability is required for ducts, plenums, and air-handling spaces
• Design allows subcables to be routed to multiple locations such as wiring racks and closets
• Suitable for both indoor plenum and outdoor installation - no need to splice outdoor cable to indoor cable at the building entrance
COST SAVINGS:
• 900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the fiber
• No need to splice outdoor cable to indoor cable at building entrance
• High crush resistance may eliminate the need for innerduct
CHARACTERISTICS:
| Characteristic | 12 Fiber Subunits |
| Operating Temp | -40°C to +85°C |
| Storage Temp | -40°C to +85°C |
| Install Temp | 0°C to +60°C |
| Flame Retardancy | UL Listed Type OFNP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232) |
| Crush Resist | 2100 N/cm |
| Impact Resist | 1000 impacts |
| Flex Resist | 2000 cycles |
| Jacket Type | K |
FEATURES:
• High performance components and construction
• UL Listed in accordance with NEC sections 770.179(a) for use in ducts, plenums and air-handling spaces
• Cable materials are Indoor/Outdoor - UV, water and fungus resistant
• Wide operating temperature range of -40°C to +85°C

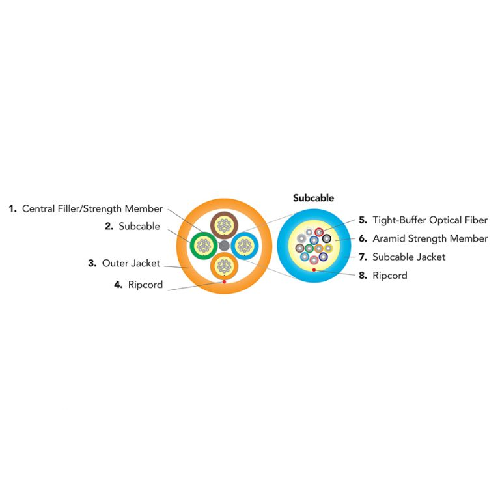

• Helically stranded core for greater flexibility and mechanical protection of the optical fibers
• Multifiber color-coded subcables, each similar to the D-Series Distribution cable, are easy to identify for improved cable management during installation
• Best design for multimode and single-mode fiber hybrid cables
• Available with 6-fiber (4.5mm) or 12-fiber (5.5mm) subcables
• Jacket highly chemical resistant for installation in harsh industrial environments
• Interlocking armor can be applied to cable as an alternative to conduit installation
