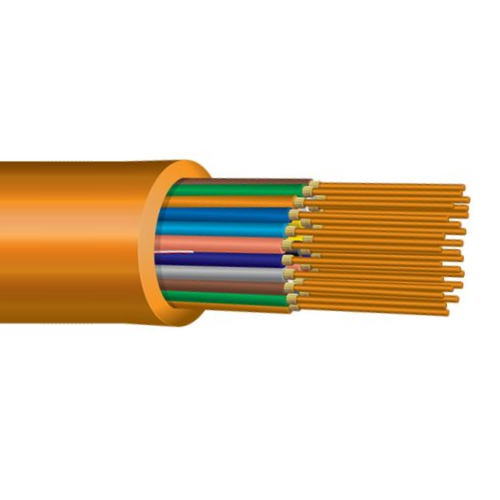

Indoor/Outdoor 4 Strand 2.0mm Breakout Multimode Plenum Orange Fiber Optic Cable BX004KWLX9OP
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Tensile Load | Menimum Bend Radius | |||||||
| Diameter | Weight | Installation | Operational | Installation | Long Term | |||
| Fiber Count | Fiber Type | Part Number | mm/(in) | kg/km (lbs/1,000) | N (lbs) | N (lbs) | cm (in) | cm (in) |
| 4 | WLX - 62.5µm OM1 + Extended Distance | BX004KWLX9OP | 6.3 (0.25) |
46.0 (31.0) |
1,600 (360) |
400 (90) |
9.5 (3.7) |
9.5 (3.7) |
APPLICATIONS:
• Ideal for installations requiring an extremely rugged and reliable cable design where maximum mechanical and environmental protection are required
• Installed in ducts, plenums, and air handling spaces
• Easiest cable to install where direct termination of the subcable to a connector and a direct run to panels and equipment are desired
Cost Savings:
• Direct termination to subcable may eliminate the need for patch panels and patch cords and reduces connector loss
• 900 µm buffer eliminates the need for costly and time-consuming installation of fanout kits or pigtail splices because connectors terminate directly to the subcable
• High crush resistance may eliminate the need for innerduct
STANDARDS:
Optical Cable Corporation Indoor/Outdoor tight-buffered fiber optic cables meet the functional requirement of the following standards:
• UL 1651
• ANSI/NFPA 262
• GR-409-CORE
• ICEA-S-104-696
• ICEA-S-83-596
• TIA-568
• TIA-598
CHARACTERISTICS:
| Characteristic | Plenum |
| Operating Temp | -40°C to +85°C |
| Storage Temp | -40°C to +85°C |
| Install Temp | 0°C to +60°C |
| Flame Retardancy | UL Listed Type OFNP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232) |
| Crush Resist | 2100 N/cm |
| Impact Resist | 1000 impacts |
| Flex Resist | 2000 cycles |
| Jacket Type | K |
FEATURES:
• High performance components and construction
• UL Listed in accordance with NEC sections 770.179(a) for use in ducts, plenums and air-handling spaces
• Most rugged and easy to install cable design for enterprise cabling applications
• Standard 2.0mm subcables can be directly terminated with standard connectors. 2.5mm and 2.9mm subcable sizes are also available
• Subcabled fiber is environmentally and mechanically protected
• Ideal for use in point-to-point runs in adverse environments
• Direct termination to subcable provides additional strain relief for better connector retention during moves, adds, and changes
• Design is ideal for direct pulling with mesh grips
• Cable materials are Indoor/Outdoor - UV, water and fungus resistant
• Wide operating temperature range of -40°C to +85°C
• High performance 900 µm tight-buffered coating on each optical fiber for environmental and mechanical protection
• Jacket highly chemical resistant for installation in harsh industrial environments
• Interlocking armor can be applied to cables as an alternative to conduit installation
• 2 to 48 fibers
