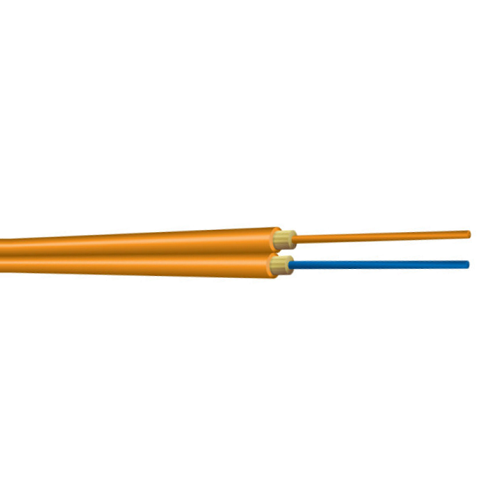

Indoor 2.9mm 2 Fiber Multimode 62.5µm A-Series Orange Fiber Optic Plenum Cable AX002SWLS9OP
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Tensile Load | Menimum Bend Radius | |||||||
| Diameter | Weight | Installation | Operational | Installation | Long Term | |||
| Fiber Count | Fiber Type | Part Number | mm/(in) | kg/km (lbs/1,000) | N (lbs) | N (lbs) | cm (in) | cm (in) |
| 2 | WLS - 62.5µm OM1 | AX002SWLS9OP | 2.9 (0.11) |
18.0 (12.60) |
1,000 (220) |
500 (110) |
5.0 (2.0) |
3.0 (1.2) |
APPLICATIONS:
• Resilient and flexible for jumpers and patch cords
• Suitable for general-purpose indoor use, such as routing connections in patching systems
• Short “patch cord” cables ideal for links between electronic equipment and main fiber optic cables
STANDARDS:
OCC tight-buffered fiber optic assembly cables meet the functional requirements of the following standards:
• ICEA-S-83-596
• TIA-568
• TIA-598
CHARACTERISTICS:
| Characteristics | Plenum |
| Operating Temp | 0°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Install Temp | 0°C to +60°C |
| Flame Retardancy | UL Listed Type OFNP (ANSI/NFPA 262) and FT6 (CSA C22.2 No. 232) |
| Crush Resist | 500 N/cm |
| Impact Resist | 200 impacts |
| Flex Resist | 2000 cycles |
| Jacket Type | S |
FEATURES:
• Flame-retardant for indoor installations
• Compatible with all standard fiber optic connectors designed for small form-factor simplex and duplex connectors such as MT-RJ and LC connectors
• High performance tight-buffered coating on each optical fiber for environmental and mechanical protection
• Custom jacket colors are available to match connectors.
• Private labeling on the cable outer jacket is also available

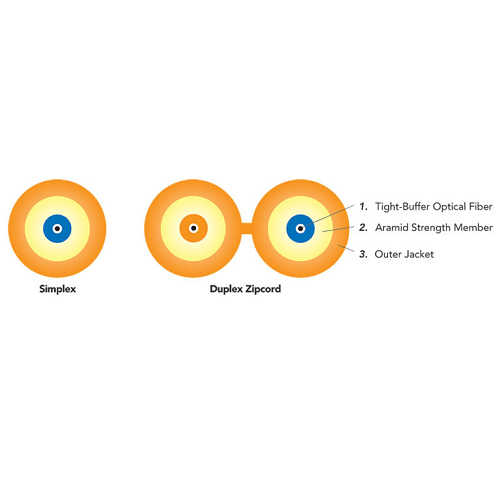

• 1 (simplex) and 2 (duplex) fibers available
• Available with bend-tolerant single-mode and multimode fibers
Download PDF Spec Sheet
