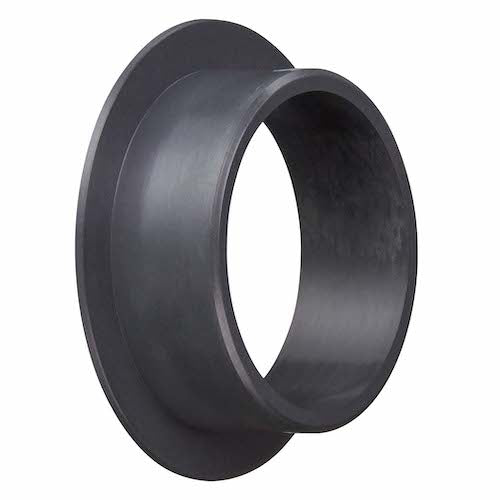

iglide® X6, sleeve bearing with flange, mm
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
DIMENSIONS:
|
Length of bevel (f) |
0.5 mm |
| Outer diameter d2 [mm] | 12.0 mm |
| Flange diameter d3 [mm] | 18.0 mm |
| Bearing length b1 [mm] | 10.00 mm |
| Flange thickness b2 [mm] | 1.00 mm |
| d1-Tolerance bearing |
+0.013 +0.071 mm, F10 |
| Ø d1 |
10.0 mm |
| Bevel angle | 30.00 ° |
PRODUCTION AND INSTALLATION TOLERANCES:
| d1-Tolerance bearing |
+0.013 +0.071 mm, F10 |
| d3-Tolerance | d13 |
| b1-Tolerance | h13 |
| b2-Tolerance | h13 |
| Housing bore tolerance |
0 +0.018 mm, H7 |
| Tolerance shaft |
0 -0.036 mm. h9 |
| d1 after press-fit (max.) | 10.071 mm |
| d1 after press-fit (min.) | 10.013 mm |
| Housing bore (max.) | 12.018 mm |
| Housing bore (min.) | 12.000 mm |
| Shaft size (max.) | 10.000 mm |
| Shaft size (min.) | 9.964 mm |
Description:
- Long term service temperature up to +482 °F
- Up to 50 % better press fit than iglide® T500
- High compressive strength
- Excellent chemical resistance
- PTFE-free
- Lubrication and maintenance-free
- Standard range from stock
Due to nano-technology, iglide® X6 shows up to six times better performance than iglide® T500 in many oscillating and rotating applications – even at temperatures over +212 °F.
Features:
Runs up to six times longer than iglide® T500
- Long term service temperature up to +482 °F
- Up to 50 % better press fit than iglide® T500
- High compressive strength
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
