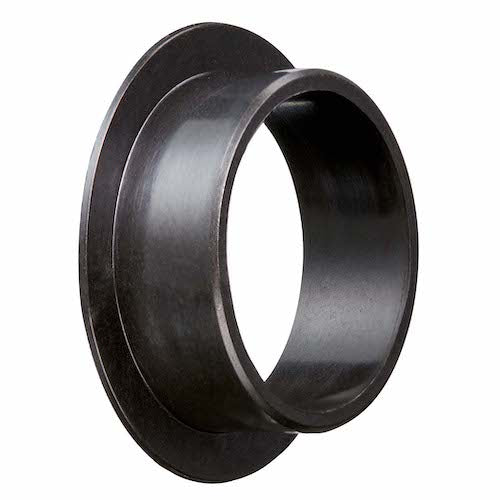

iglide® T500, sleeve bearing with flange, mm

iglide® T500, sleeve bearing with flange, mm
Roll over image to Zoom
iglide® T500, sleeve bearing with flange, mm
Roll over image to Zoom
iglide® T500, sleeve bearing with flange, mm
Write a Review
Ask a Question Download PDF Buyer Guide
SKU: TFM- 0405-04
Min Length: 1 FT
Max Length: 10000 FT

Categories:

Price:
$0.00 /FT
$0.00 /FT
Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.
Free Shipping: On orders above $1000
Quantity must be 1 or more

Enter the required footage in the quantity box - Cut to one length

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Where are we? 4 Continents 9 Countries

map
garrie

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!
Email Us

info@nassaunationalcable.com

Quick Support

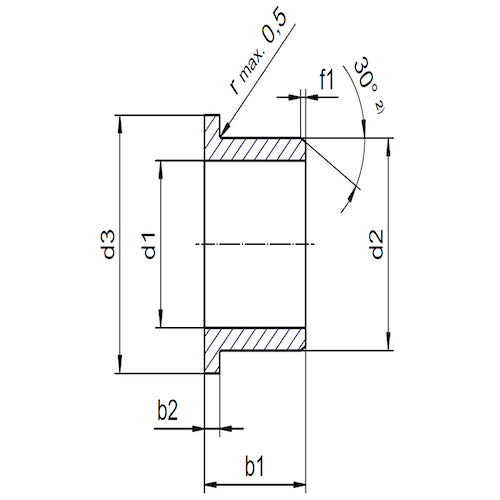

DIMENSIONS:
Length of bevel (f)
   0.3 mm
Outer diameter d2 [mm] 5.5 mm
Flange diameter d3 [mm] 9.5 mm
Bearing length b1 [mm] 4.00  mm
Flange thickness b2 [mm] 0.75 mm
d1-Tolerance bearing +0.010 +0.058 mm, F10
Ø d1 4.0 mm
Bevel angle 30.00 °



PRODUCTION AND INSTALLATION TOLERANCES:
  d1-Tolerance bearing +0.010 +0.058 mm, F10
d3-Tolerance d13
b1-Tolerance h13
b2-Tolerance h13
Housing bore tolerance 0 +0.012 mm, H7
Tolerance shaft 0 -0.030 mm. h9
d1 after press-fit (max.) 4.058 mm
d1 after press-fit (min.) 4.010 mm
Housing bore (max.) 5.512 mm
Housing bore (min.) 5.500 mm
Shaft size (max.) 4.000 mm
Shaft size (min.) 3.970 mm



Description:

  • Over 250 dimensions available from stock
  • Temperature resistant from -212 °F to +482 °F in continuous operation
  • Universal resistance to chemicals
  • High compressive strength
  • Very low moisture absorption
  • Excellent wear resistance through the entire temperature range

iglide® T500 is defined by its combination of high temperature resistance with compressive strength, along with high resistance to chemicals. iglide® T500 is designed for higher speeds than other iglide® bearings.

Features:

  • Up to 21755 psi static
  • Temperature resistant from -212 °F to +482 °F in continuous operation
  • Universal resistance to chemicals
  • High compressive strength
  • CO2 equivalent: per piece available

*Data provided on this page is subject to change based on different manufacturers' variances

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
