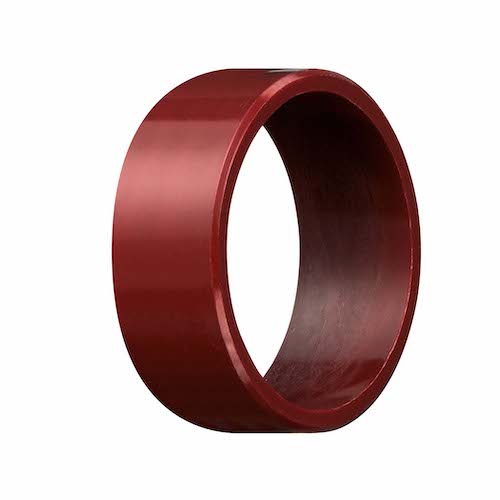

iglide® R, sleeve bearing, mm
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support

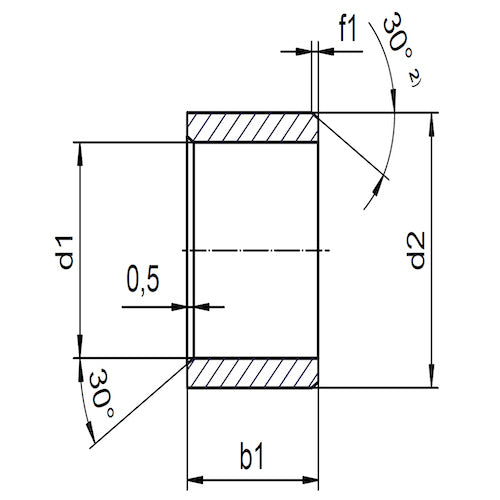

DIMENSIONS:
|
Length of bevel (f) |
0.3 mm |
| Outer diameter d2 [mm] | 7.0 mm |
| Bearing length b1 [mm] | 5.00 mm |
| Ø d1 |
5.0 mm |
| Bevel angle | 30.00 ° |
PRODUCTION AND INSTALLATION TOLERANCES:
| b1-Tolerance | h13 |
| Housing bore tolerance |
0 +0.015 mm, H7 |
| Tolerance shaft |
0 -0.030 mm. h9 |
| d1 after press-fit (max.) | 5.068 mm |
| d1 after press-fit (min.) | 5.020 mm |
| Housing bore (max.) | 7.015 mm |
| Housing bore (min.) | 7.000 mm |
| Shaft size (max.) | 5.000 mm |
| Shaft size (min.) | 4.970 mm |
Description:
- Good abrasion resistance
- Low coefficients of friction in dry operation
- Cost-effective
- Very little humidity absoption
- Self-lubricating and maintenance-free
- Standard range from stock
The development of the iglide® R as a bearing material focused on high performance and very low cost. Especially in the dry operation low coefficients of friction and wear were to be achieved. Bearings made from iglide® R are selectively supported by a combination of solid lubricants. The PTFE- and silicon-free material achieves extremely low coefficients of friction in dry operation and runs largely free of stick-slip effects.
Features:
- Low-cost material, low wear
- Good abrasion resistance
- Low coefficients of friction in dry operation
- Cost-effective
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
