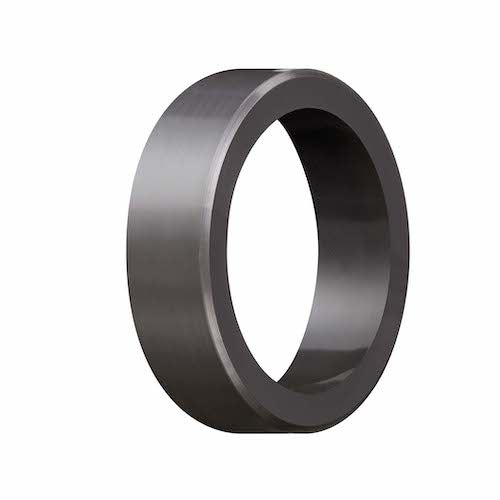

iglide® M250, sleeve bearing, mm
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support

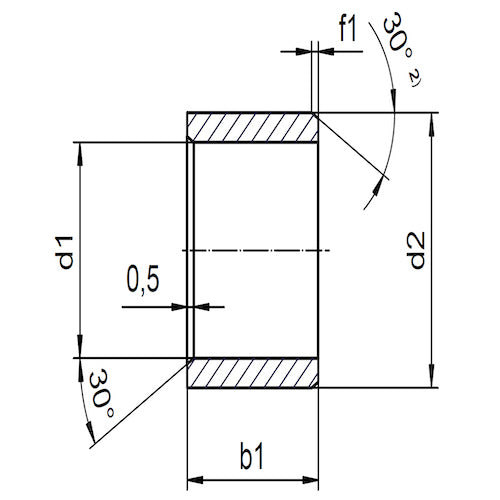

DIMENSIONS:
|
Length of bevel (f) |
0.3 mm |
| Outer diameter d2 [mm] | 5.5 mm |
| Bearing length b1 [mm] | 3.00 mm |
| Ø d1 |
4.0 mm |
| Bevel angle | 30.00 ° |
PRODUCTION AND INSTALLATION TOLERANCES:
| b1-Tolerance | h13 |
| Housing bore tolerance |
0 +0.010 mm, H7 |
| Tolerance shaft |
0 -0.025 mm. h9 |
| d1 after press-fit (max.) | 1.080 mm |
| d1 after press-fit (min.) | 1.020 mm |
| Housing bore (max.) | 3.010 mm |
| Housing bore (min.) | 3.000 mm |
| Shaft size (max.) | 1.000 mm |
| Shaft size (min.) | 0.975 mm |
Description:
- Over 450 dimensions available from stock
- Excellent vibration damping
- Resistant to edge loads
- High impact resistance
- Thick walled according to DIN 1850
- Dirt can become embedded for shaft protection
- Self-lubricating and maintenance-free
The self-lubricating plain bearing made from iglide® M250 distinguishes itself through its impact strength, vibration dampening and wear resistance. They excel in applications in which vibration dampening is necessary, for example, in fitness and packaging machines. Since they are additionally able to absorb dirt, they are also suited for agricultural machines and garden appliances.
Features:
- Excellent vibration damping
- Resistant to edge loads
- High impact resistance
- CO2 equivalent: per piece available
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
