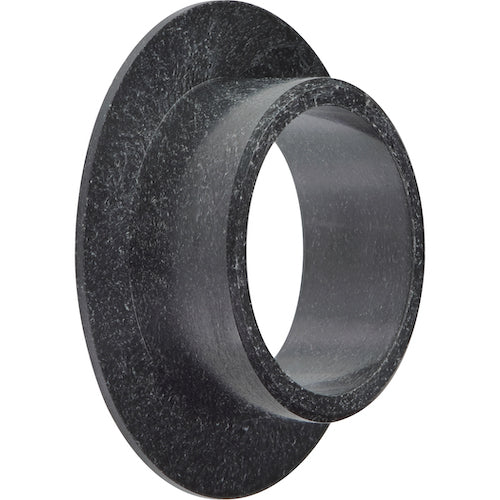

iglide® J3B, sleeve bearing with flange, mm
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support

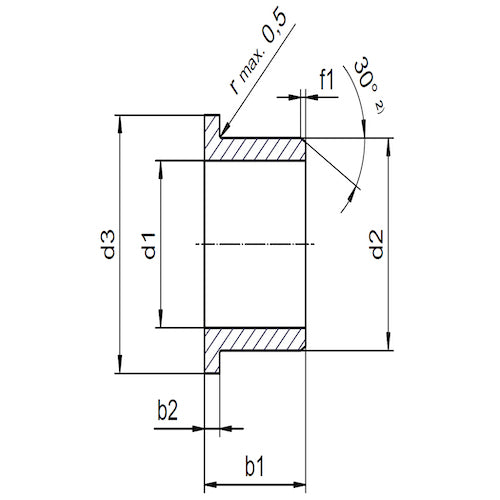

DIMENSIONS:
|
Length of bevel (f) |
0.3 mm |
| Outer diameter d2 [mm] | 8.0 mm |
| Flange diameter d3 [mm] | 12.0 mm |
| Bearing length b1 [mm] | 6.00 mm |
| Flange thickness b2 [mm] | 1.00 mm |
| d1-Tolerance bearing |
+0.020 +0.068 mm, E10 |
| Ø d1 |
6.0 mm |
| Bevel angle | 30.00 ° |
PRODUCTION AND INSTALLATION TOLERANCES:
| d1-Tolerance bearing |
+0.020 +0.068 mm, E10 |
| d3-Tolerance | d13 |
| b1-Tolerance | h13 |
| b2-Tolerance | h13 |
| Housing bore tolerance |
0 +0.012 mm, H7 |
| Tolerance shaft |
0 -0.030 mm. h9 |
| d1 after press-fit (max.) | 4.068 mm |
| d1 after press-fit (min.) | 4.020 mm |
| Housing bore (max.) | 5.512 mm |
| Housing bore (min.) | 5.500 mm |
| Shaft size (max.) | 4.000 mm |
| Shaft size (min.) | 3.970 mm |
Description:
The proven long-life material iglide® J3 is now available in black as well. The endurance runner is a specialist for pivoting and pulsating loads and also media-resistant.
Typical application areas:
furniture technology, sports and leisure equipment, two-wheel technology
Features:
- Excellent wear resistance at room temperature
- Very good wear resistance at medium temperatures
- Excellent friction coefficients
- Low moisture absorption
- Good wear resistance under water
- High media resistance
- Resistant to edge pressure
- Resistant to shocks and impacts
- Resistant to dirt and dust
